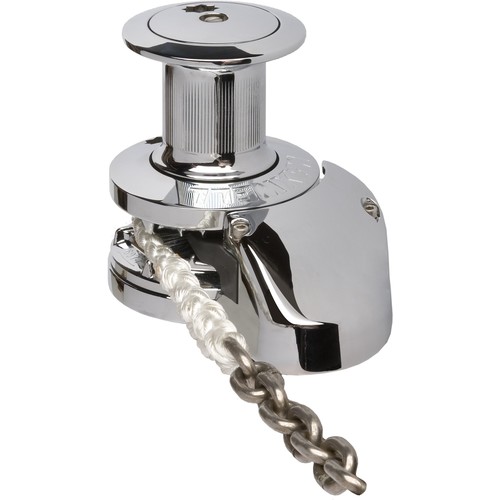

The Maxwell RC10-8 Hydraulic 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105437) is a heavy-duty hydraulic rope/chain windlass designed for vessels requiring increased deck clearance and independent rope handling capability. Featuring a hydraulic drive with power equivalent to a 1000 W electric system, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The 150 TDC configuration supports installation on thicker decks, while the integrated capstan drum enables flexible rope handling alongside standard anchoring operations.
- Description
- Ask a Question
-
Maxwell RC10-8 Hydraulic 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105437)
The Maxwell RC10-8 Hydraulic is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for demanding marine applications where hydraulic power and increased deck clearance are required. This model features a 150 TDC configuration, making it suitable for installations on vessels with thicker deck structures or specific mounting constraints.
This version is supplied with a fluted stainless steel capstan drum, enabling independent rope handling operations in addition to standard anchor deployment and retrieval. The windlass is manufactured from marine-grade stainless steel and chromed bronze, ensuring durability and corrosion resistance in harsh marine environments.
Specification Value Vetus Part Number P105437 Model RC10-8 Hydraulic Series Maxwell RC10 Series Drive Type Hydraulic Equivalent Power Approximately 1000 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 150 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Hydraulic vertical rope/chain anchor windlass
- Integrated capstan drum for independent rope handling operations
- Increased 150 TDC deck clearance for thicker deck installations
- Marine-grade stainless steel and chromed bronze construction
- Designed for reliable performance in demanding marine conditions
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
