The Maxwell Capstan 1000 VC 24V 1000W Vertical Capstan (Vetus P102785) is a stainless steel electric capstan designed for rope-handling applications, featuring a 24 V, 1000 W motor, vertical configuration with integrated fluted drum, 50 mm total deck clearance (50TDC), and suitability for rope up to 14 mm, delivering powerful and reliable performance for anchor recovery and rope hauling on smaller powerboats and sailboats.
- Description
- Ask a Question
-

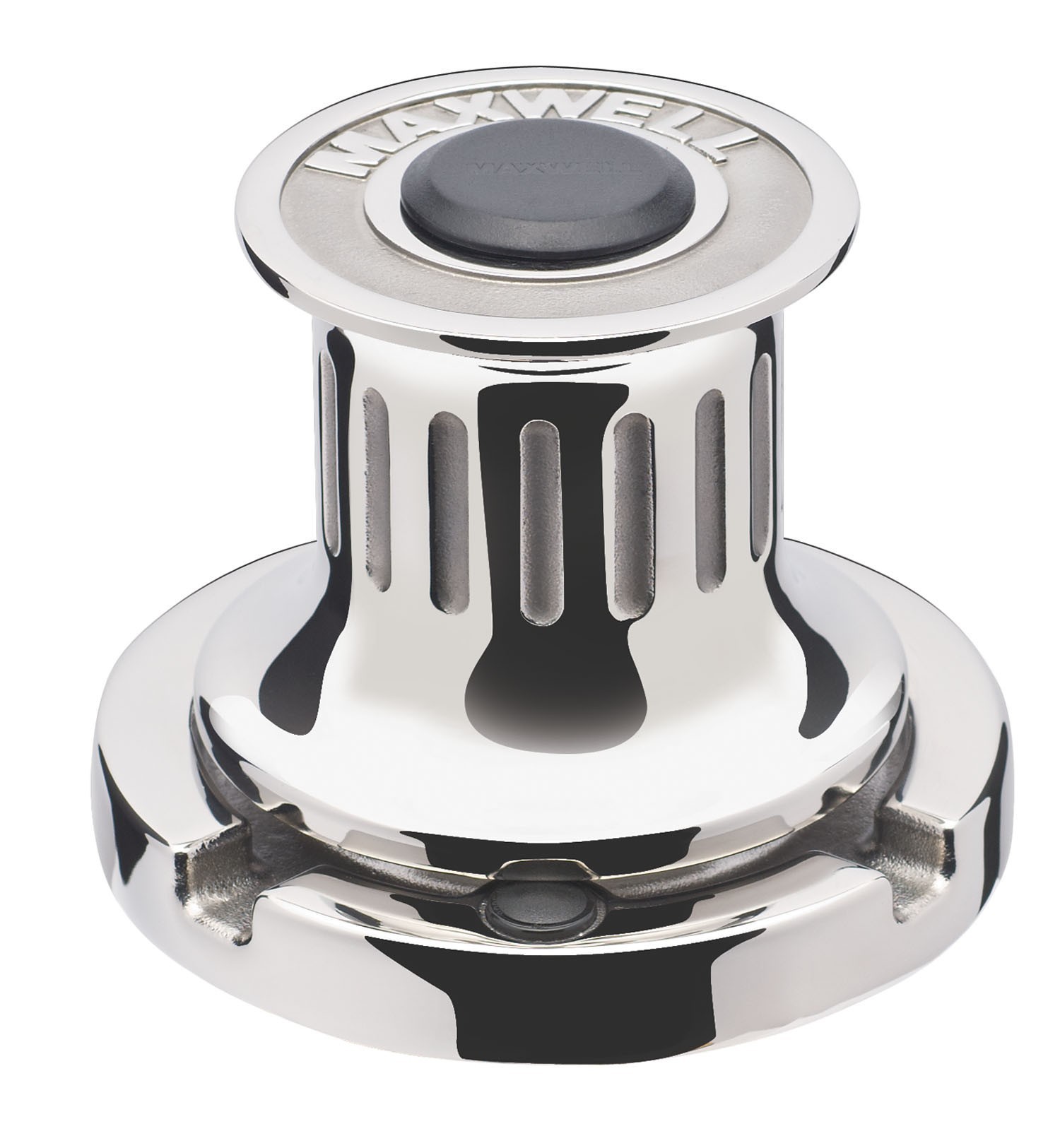

Maxwell Capstan 1000 VC 24V 1000W Vertical Stainless Steel Capstan 50TDC (Vetus P102785)
The Maxwell Capstan 1000 VC is a high-capacity electric capstan developed for efficient rope-handling tasks in marine environments. Designed for simple and cost-effective anchor recovery on smaller powerboats and sailboats, it also serves as a reliable auxiliary rope-hauling solution on larger vessels. The vertical configuration, combined with a fluted stainless steel drum and a powerful electric motor, ensures smooth, controlled operation under demanding conditions.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Electric vertical capstan Part Number P102785 Voltage 24 V DC Motor Power 1000 W Configuration Vertical Total Deck Clearance 50 mm (50TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Line Speed (normal working) 20 m/min Weight Approx. 18 kg
Key Features
- Powerful 1000 W electric motor designed for demanding marine rope-handling applications.
- Vertical capstan design suitable for anchor recovery and docking operations.
- Fluted, snag-free drum ensures smooth and secure rope handling.
- Low-profile 50TDC configuration for installations with limited deck clearance.
- Designed for rope diameters up to 14 mm.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Compact gearbox constructed from corrosion-resistant materials.
- Heavy-duty, dual-direction electric motor suitable for marine winch applications.
- Modular design allows simplified through-deck installation and precise gearbox alignment.
Typical Applications
- Anchor recovery on smaller powerboats and sailboats.
- Auxiliary rope hauling and docking operations.
- Utility rope-handling tasks on larger vessels.
Installation Notes
- Designed primarily for vertical deck mounting.
- Horizontal mounting option available for pot hauler or davit winch applications.
- Ensure vessel electrical system supports 24 V DC operation at 1000 W.
-
