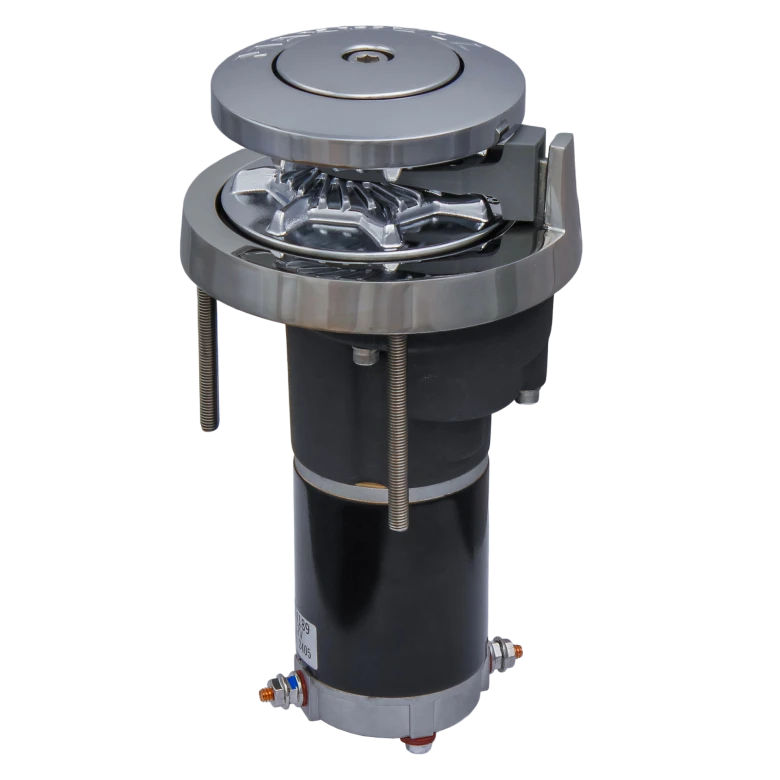

The Maxwell VWRC6 Vertical Windlass 12V 500W CW (Vetus P106293) is a compact electric vertical windlass designed for anchor rodes with 6 mm chain and up to 12 mm rope, featuring a 500 W motor, clockwise (CW) rotation, manual free-fall deployment, and a maximum pulling capacity of 350 kg, providing efficient anchoring performance for small vessels.
- Description
- Ask a Question
-
Maxwell VWRC6 Vertical Windlass 12V 500W for 6mm Chain CW (Vetus P106293)
The Maxwell VWRC6 is the most compact model in Maxwell’s vertical windlass range, engineered to deliver reliable anchoring performance in a lightweight and space-efficient design. Intended for use with 6 mm chain and rope up to 12 mm in diameter, the VWRC6 combines efficient chain routing with easy anchor rode removal. Its compact dimensions and low weight make it particularly suitable for small boats where space and weight are critical considerations.
Specification Value Manufacturer Vetus Model VWRC6 Product Type Electric vertical windlass Part Number P106293 Voltage 12 V DC Motor Power 500 W Rotation Clockwise (CW) Chain Size 6 mm Maximum Rope Diameter Up to 12 mm Maximum Pull Up to 350 kg Chain Speed 24 m/min Rope Speed 21 m/min Weight Approx. 8.5 kg
Key Features
- Compact vertical windlass designed specifically for small vessel anchoring systems.
- 500 W electric motor provides efficient anchor deployment and retrieval.
- Manual free-fall anchor deployment using a cone-type brake and clutch mechanism.
- Optimized chain routing for smooth operation and reduced wear.
- Easy anchor rode removal, compatible with traditional shackles and thimbles.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Chromed bronze chainwheel for durability and corrosion resistance.
- Robust mechanical design engineered for long service life.
Installation Flexibility
- Vertical deck mounting configuration.
- Suitable for horizontal installation on a bulkhead inside the chain locker.
- Compact footprint simplifies installation in confined spaces.
Typical Applications
- Anchor handling on small powerboats and sailboats.
- Light-duty anchoring systems requiring compact windlass solutions.
- Installations where low weight and efficient chain routing are essential.
-
