The Maxwell Capstan 1000 VC 24V 1000W Vertical Capstan (Vetus P102791) is a high-quality electric capstan designed for rope-handling applications, featuring a 24 V DC, 1000 W motor, vertical configuration with integrated fluted drum, extended deck clearance of 150 mm (150TDC), and suitability for rope up to 14 mm, providing powerful anchor recovery and reliable rope hauling on smaller powerboats and sailboats.
- Description
- Ask a Question
-

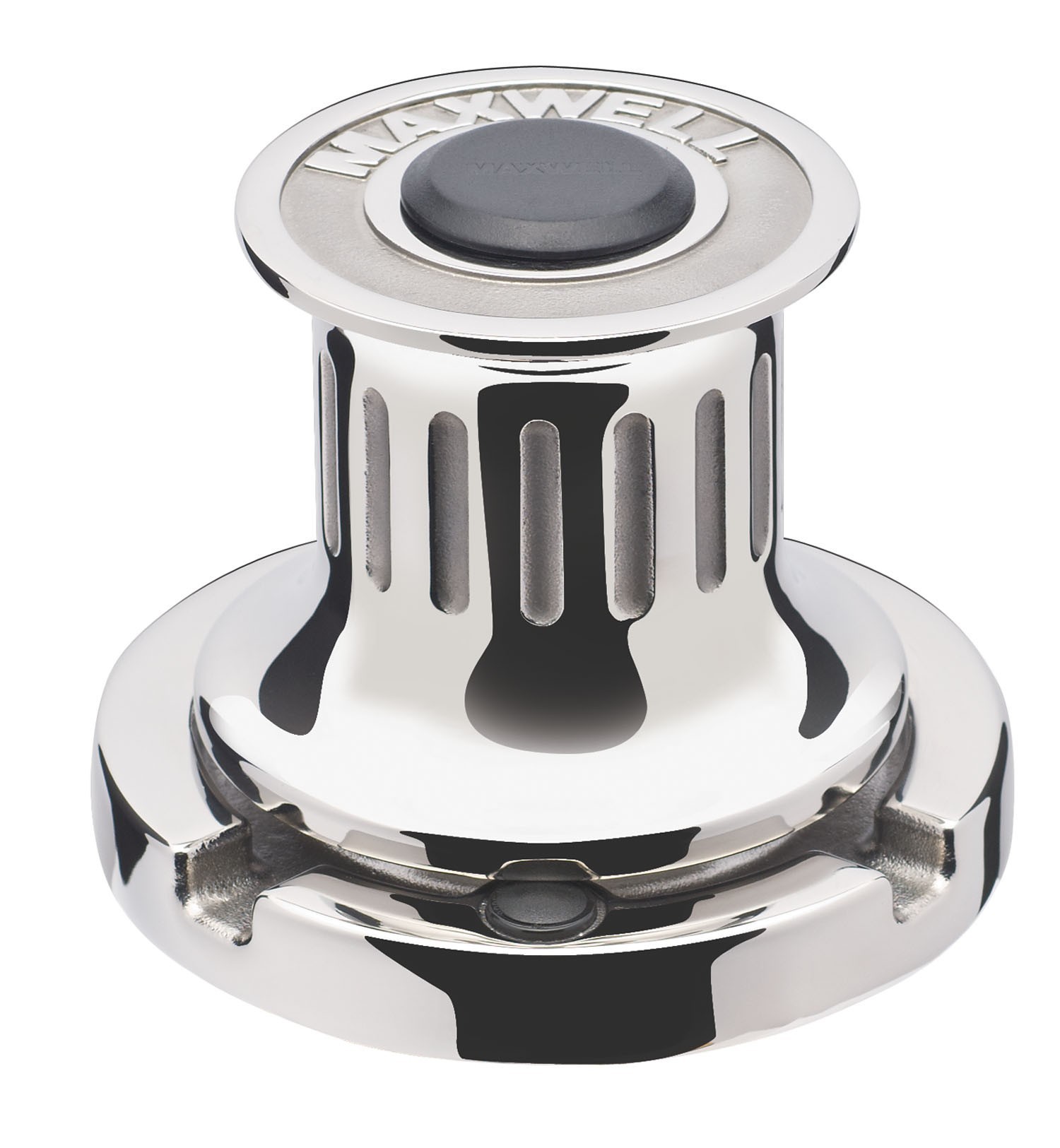

Maxwell Capstan 1000 VC 24V 1000W Vertical Stainless Steel Capstan 150TDC (Vetus P102791)
The Maxwell Capstan 1000 VC is a robust electric vertical capstan developed for efficient and economical rope-handling operations in marine environments. Designed primarily for simple anchor recovery on smaller powerboats and sailboats, it is equally suitable for rope hauling, docking duties, or auxiliary line handling on larger vessels. The VC Series combines a fluted stainless steel warping drum with a powerful electric motor to deliver smooth, controlled performance from any rope lead direction.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Electric vertical capstan Part Number P102791 Voltage 24 V DC Motor Power 1000 W Configuration Vertical Total Deck Clearance 150 mm (150TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm* Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Line Speed (normal working) 20 m/min Weight Approx. 18 kg
Key Features
- High-output 1000 W electric motor designed for demanding marine winch applications.
- Vertical capstan configuration suitable for anchor recovery, docking, and auxiliary rope hauling.
- Fluted, snag-free warping drum allows rope handling from any direction.
- Extended 150TDC deck clearance supports installations requiring increased vertical spacing.
- Designed for rope diameters up to 14 mm (based on a minimum of three turns on the drum).
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Compact, corrosion-resistant gearbox for long service life.
- Anodized aluminum gearbox and spacer (VC1000 series characteristic).
- Heavy-duty, dual-direction electric motor designed specifically for marine winches.
- Modular construction allows simplified through-deck installation and precise alignment.
Typical Applications
- Anchor recovery on smaller powerboats and sailboats.
- Docking capstan use on larger craft.
- Auxiliary rope hauling from any direction.
- Pot hauler or davit winch applications with optional horizontal mounting.
Installation Notes
- Designed primarily for vertical deck mounting.
- Alternative gearbox and motor positions accommodate various installation layouts.
- Horizontal mounting possible for specific applications.
- Ensure vessel electrical system supports 24 V DC operation at 1000 W.
- Appropriate circuit protection and control equipment required (not supplied).
*Rope diameters indicated are based on a minimum of three turns on the drum.
-
