The Maxwell Capstan 1000 VC 12V 1000W Vertical Capstan (Vetus P102790) is a stainless steel electric capstan designed for rope-handling applications, featuring a 12 V, 1000 W motor, vertical configuration with integrated fluted drum, increased deck clearance of 150 mm (150TDC), and suitability for rope up to 14 mm, providing powerful anchor recovery and reliable rope hauling performance on smaller powerboats and sailboats.
- Description
- Ask a Question
-

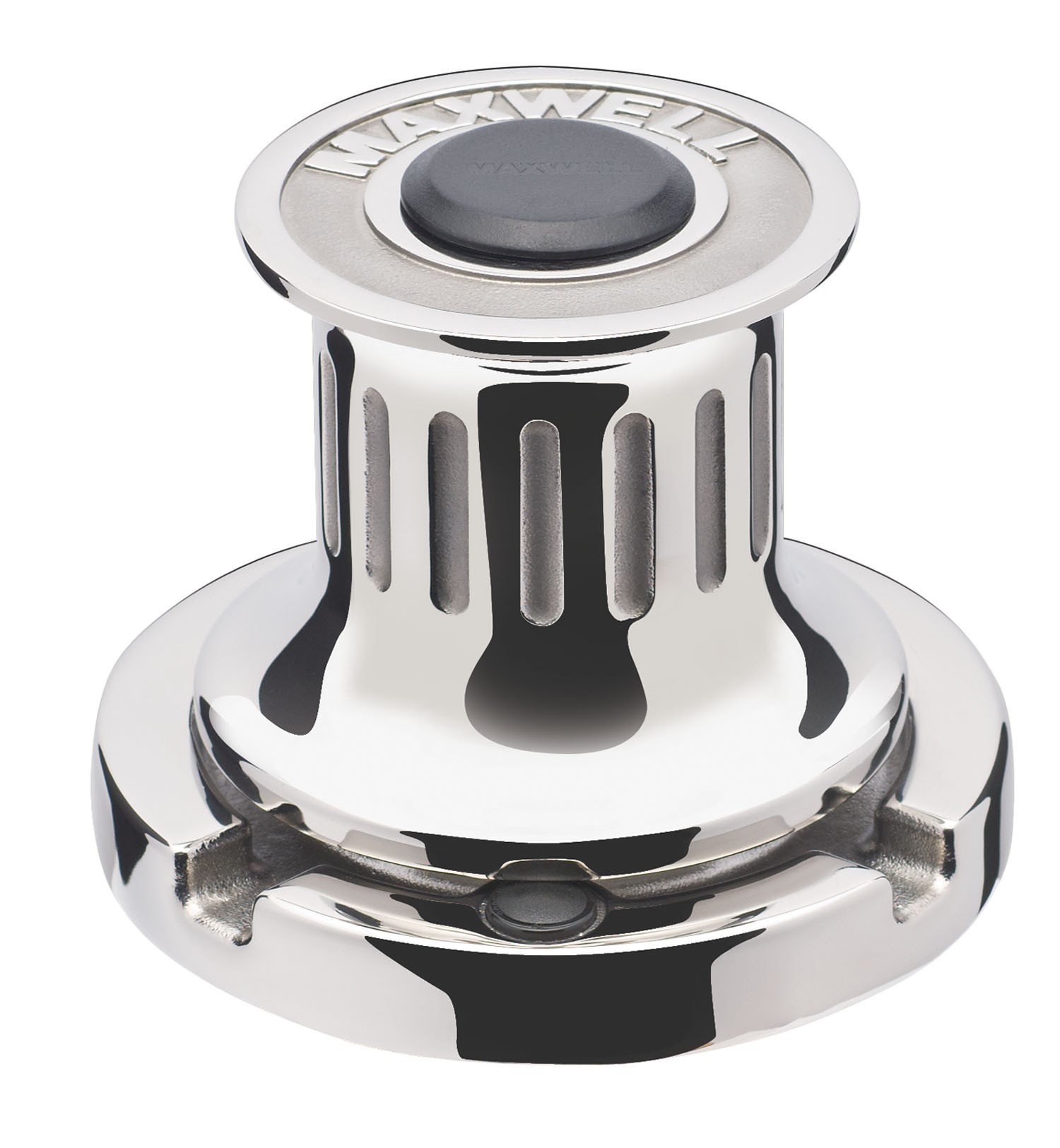

Maxwell Capstan 1000 VC 12V 1000W Vertical Stainless Steel Capstan 150TDC (Vetus P102790)
The Maxwell Capstan 1000 VC is a high-performance electric capstan developed for efficient rope-handling operations in marine environments. Designed for simple and cost-effective anchor recovery on smaller powerboats and sailboats, it also provides reliable rope hauling capability for auxiliary applications on larger vessels. The VC Series combines a vertical configuration with a fluted stainless steel drum and a powerful electric motor to deliver smooth, controlled operation under demanding conditions.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Electric vertical capstan Part Number P102790 Voltage 12 V DC Motor Power 1000 W Configuration Vertical Total Deck Clearance 150 mm (150TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Line Speed (normal working) 20 m/min Weight Approx. 18 kg
Key Features
- High-output 1000 W electric motor designed for demanding marine rope-handling tasks.
- Vertical capstan configuration suitable for anchor recovery and general rope hauling.
- Fluted, snag-free drum ensures secure and smooth rope control.
- Extended 150TDC configuration provides increased deck clearance for flexible installations.
- Designed for rope diameters up to 14 mm.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Compact and corrosion-resistant gearbox with anodized aluminum spacer.
- Heavy-duty, dual-direction electric motor suitable for marine winch applications.
- Modular design simplifies installation, alignment, and servicing.
Typical Applications
- Anchor recovery on smaller powerboats and sailboats.
- Rope hauling and docking operations.
- Auxiliary line handling on larger vessels.
- Pot hauling or davit winch use with optional horizontal mounting.
Installation Notes
- Designed primarily for vertical deck mounting.
- Horizontal installation possible for alternative applications.
- Ensure vessel electrical system supports 12 V DC operation at 1000 W.
- Use appropriate circuit protection and adequate deck reinforcement.
-
