ID
1282006
$ 3,044.90
1-2 weeks delivery time
-
+
The Maxwell Capstan 1000 VC Hydraulic Vertical Capstan (Vetus P102792) is a stainless steel hydraulic capstan designed for rope-handling applications, featuring a vertical configuration with integrated fluted drum, extended total deck clearance of 150 mm (150TDC), suitability for rope up to 14 mm, and a maximum pulling capacity of 700 kg, providing a simple and cost-effective solution for anchor recovery and rope hauling on smaller and larger vessels.
- Description
- Ask a Question
-

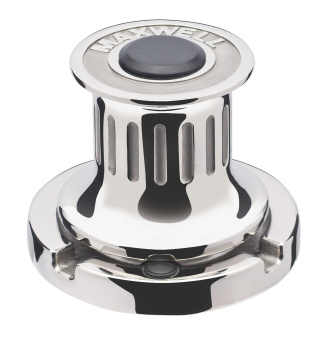

Maxwell Capstan 1000 VC Hydraulic Vertical Stainless Steel Capstan 150TDC (Vetus P102792)
The Maxwell Capstan 1000 VC Hydraulic is a heavy-duty vertical capstan developed for efficient rope-handling operations in marine environments. As part of the VC Series, this model is designed for simple and economical anchor recovery on smaller boats while also supporting rope hauling tasks on larger vessels. The hydraulic drive delivers consistent pulling performance, and the fluted stainless steel drum ensures secure rope grip and controlled operation from multiple lead angles.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Hydraulic vertical capstan Part Number P102792 Drive Type Hydraulic Configuration Vertical Total Deck Clearance 150 mm (150TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Weight Approx. 18 kg
Key Features
- Hydraulic vertical capstan designed for demanding rope-handling applications.
- Fluted stainless steel drum provides secure, snag-free rope control.
- Extended 150TDC configuration allows increased deck clearance for flexible installations.
- High pulling capacity suitable for anchor recovery and heavy rope hauling.
- Simple and cost-effective design for reliable marine operation.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Robust construction suitable for continuous hydraulic operation.
- Designed for integration with vessel hydraulic systems.
Typical Applications
- Anchor recovery on smaller boats using rope-only systems.
- Rope hauling and docking operations on larger vessels.
- Utility and service winch applications requiring hydraulic drive.
Installation Notes
- Designed for vertical deck mounting.
- Extended deck clearance requires adequate space below deck.
- Ensure vessel hydraulic system is correctly sized and protected.
- Use appropriate deck reinforcement and hydraulic safety components.
-
