ID
1293131
$ 1,636.61
1-2 weeks delivery time
-
+
The Maxwell VWRC6 Vertical Windlass 24V 500W CW (Vetus P106294) is a compact electric vertical windlass designed for anchor rodes with 6 mm chain and up to 12 mm rope, featuring a 500 W motor, clockwise (CW) rotation, manual free-fall anchor deployment, and a maximum pulling capacity of 350 kg, delivering efficient anchoring performance for small vessels.
- Description
- Ask a Question
-

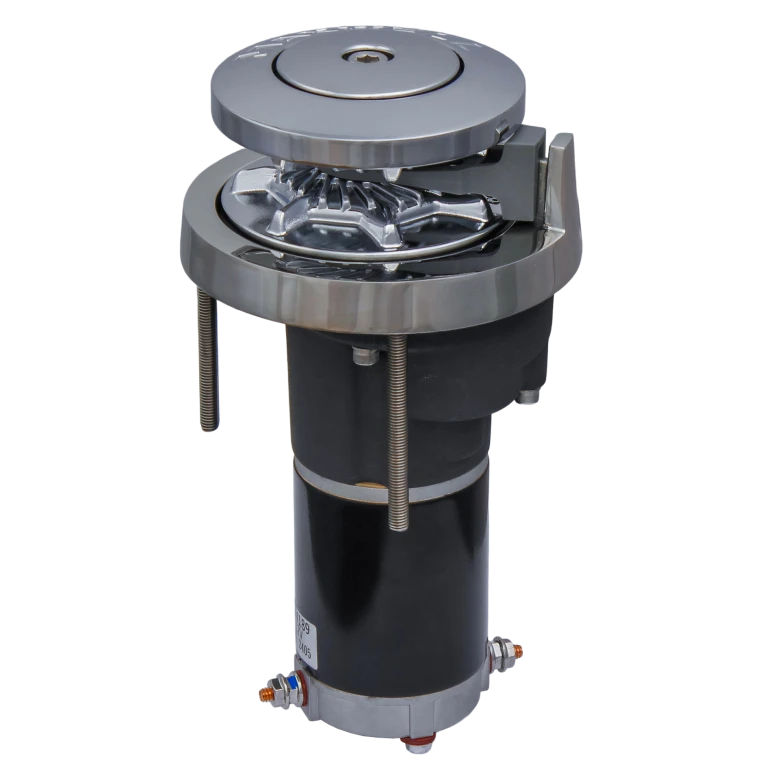

Maxwell VWRC6 Vertical Windlass 24V 500W for 6mm Chain CW (Vetus P106294)
The Maxwell VWRC6 is the smallest model in Maxwell’s vertical windlass range, engineered to provide reliable anchoring performance in a compact and lightweight design. Intended for anchor rodes using 6 mm chain and rope up to 12 mm in diameter, the VWRC6 offers optimized chain routing and easy anchor rode removal. Its low weight and compact dimensions make it an ideal solution for small vessels where space and weight are critical.
Specification Value Manufacturer Vetus Model VWRC6 Product Type Electric vertical windlass Part Number P106294 Voltage 24 V DC Motor Power 500 W Rotation Clockwise (CW) Chain Size 6 mm Maximum Rope Diameter Up to 12 mm Maximum Pull Up to 350 kg Chain Speed 24 m/min Rope Speed 21 m/min Weight Approx. 8.5 kg
Key Features
- Compact vertical windlass designed for small boat anchoring systems.
- 500 W electric motor delivers efficient anchor retrieval and deployment.
- Manual free-fall anchor deployment using a cone-type brake and clutch mechanism.
- Optimized chain routing for smooth operation and reduced wear.
- Easy anchor rode removal with compatibility for traditional shackles and thimbles.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Chromed bronze chainwheel for durability and corrosion resistance.
- Robust mechanical design for long service life in marine environments.
Installation Flexibility
- Vertical deck mounting configuration.
- Supports horizontal installation on a bulkhead inside the chain locker.
- Compact footprint simplifies installation in confined spaces.
Typical Applications
- Anchor handling on small powerboats and sailboats.
- Light-duty anchoring systems requiring compact windlass solutions.
- Installations where low weight and efficient chain routing are essential.
-
