The Maxwell Capstan 1000 VC Hydraulic Vertical Capstan (Vetus P102786) is a stainless steel hydraulic capstan designed for rope-handling applications, featuring a vertical configuration with integrated fluted drum, 50 mm total deck clearance (50TDC), suitability for rope up to 14 mm, and a maximum pulling capacity of 700 kg, providing a simple and cost-effective solution for anchor recovery and rope hauling on a wide range of vessels.
- Description
- Ask a Question
-

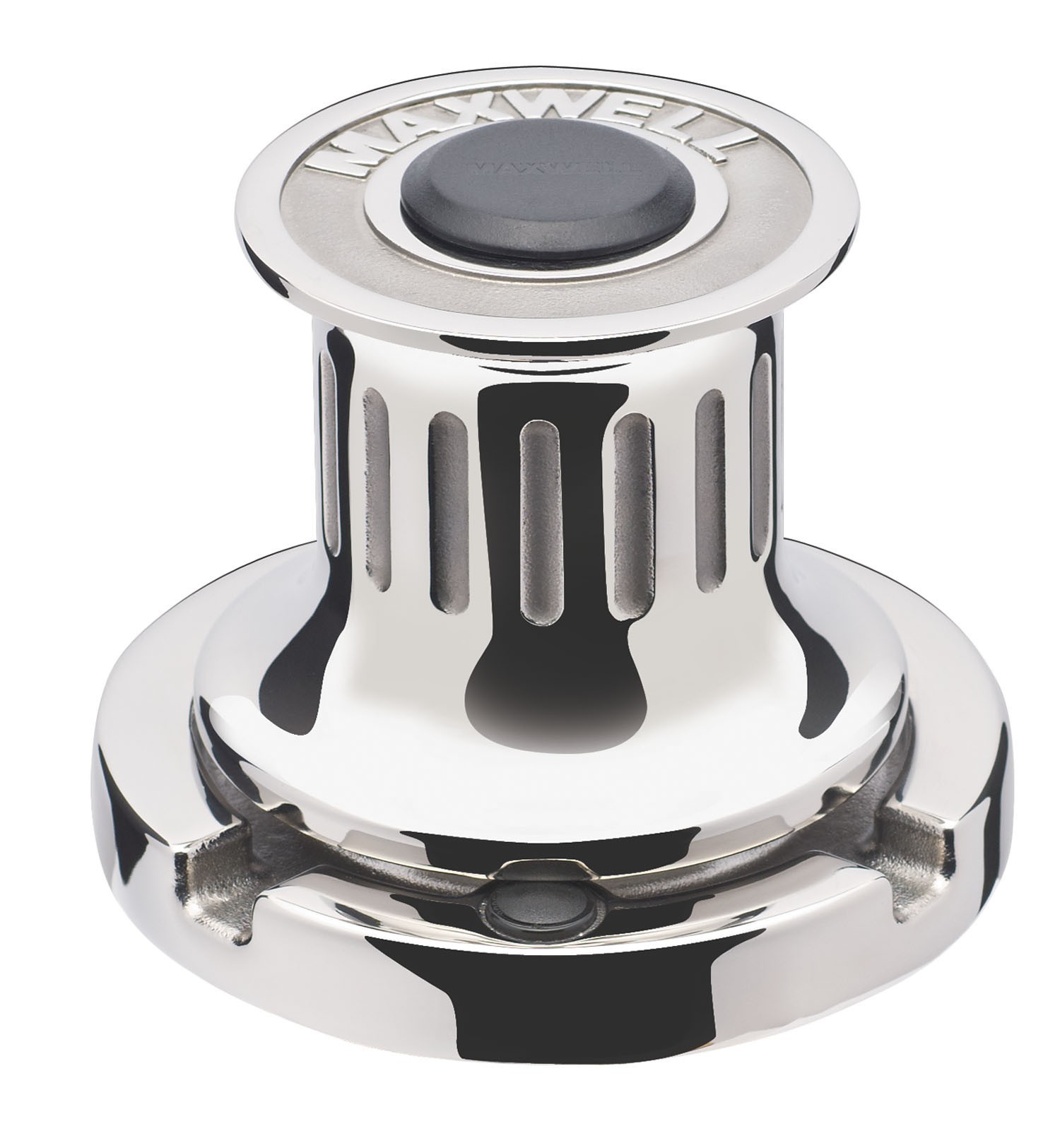

Maxwell Capstan 1000 VC Hydraulic Vertical Stainless Steel Capstan 50TDC (Vetus P102786)
The Maxwell Capstan 1000 VC Hydraulic is a robust vertical capstan designed for efficient rope-handling operations in marine environments. As part of the VC Series, this model is intended for simple and economical anchor recovery on smaller boats as well as rope hauling duties on larger vessels. The hydraulic drive ensures consistent performance, while the stainless steel fluted drum provides secure rope grip and smooth, controlled handling.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Hydraulic vertical capstan Part Number P102786 Drive Type Hydraulic Configuration Vertical Total Deck Clearance 50 mm (50TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Weight Approx. 18 kg
Key Features
- Hydraulic vertical capstan designed for demanding rope-handling applications.
- Stainless steel fluted drum ensures secure, snag-free rope control.
- Low-profile 50TDC configuration for installations with limited deck clearance.
- High pulling capacity suitable for anchor recovery and hauling tasks.
- Simple and cost-effective design for reliable marine operation.
Construction and Materials
- Marine-grade stainless steel (AISI 316) components above deck.
- Durable construction suitable for continuous operation in harsh marine environments.
- Designed for integration with vessel hydraulic systems.
Typical Applications
- Anchor recovery on smaller boats using rope-only systems.
- Rope hauling and docking operations on larger vessels.
- Utility and service winch applications requiring hydraulic drive.
Installation Notes
- Designed for vertical deck mounting.
- Ensure vessel hydraulic system is correctly sized and protected.
- Use appropriate deck reinforcement and hydraulic safety components.
-
