The Maxwell AnchorMax 24V 500W Vertical Capstan (Vetus P102535) is a compact electric capstan designed for rope-handling applications on vessels from 5 to 10 m, featuring a 24 V, 500 W motor, vertical configuration with integrated drum, suitability for 12 mm rope, and reliable pulling and lifting performance for anchoring, pot hauling, and davit operations.
- Description
- Ask a Question
-

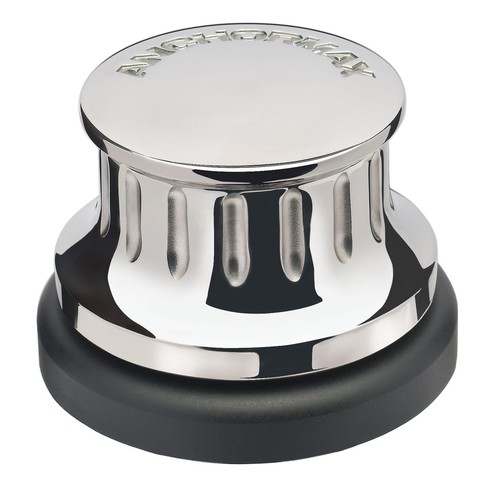

Maxwell AnchorMax 24V 500W Vertical Capstan for 12mm Rope (Vetus P102535)
The Maxwell AnchorMax 24V electric capstan is a highly versatile vertical winch designed for general-purpose rope-handling applications in the marine environment. Powered by a 24 V, 500 W electric motor, it is suitable for use as an anchor winch, pot hauler, or davit winch on vessels ranging from 5 to 10 meters in length. The compact construction and high power-to-weight ratio make it an efficient solution where space and weight are critical factors.
Specification Value Manufacturer Vetus Product Type Electric vertical capstan Part Number P102535 Voltage 24 V DC Motor Power 500 W Configuration Vertical Rope / Chain Type Rope only Maximum Rope Diameter 12 mm Drum Integrated Maximum Pull / Lift Up to 386 kg Maximum Line Pull / Lift (typical) 330 kg Line Speed at Nominal Load 32 m/min Line Speed (normal working) 18 m/min Weight Approx. 5.5 – 5.7 kg Maximum Vessel Length Up to 10 m (33 ft) Maximum Vessel Displacement Up to 4 tonnes
Key Features
- Compact vertical electric capstan suitable for a wide range of rope-handling applications.
- 24 V, 500 W motor provides strong pulling performance with a high power-to-weight ratio.
- Integrated drum allows controlled rope handling for anchoring and lifting operations.
- Fully sealed gearbox design helps minimize water intrusion below deck level.
- Designed for use on small and medium-sized vessels where space efficiency is critical.
Construction and Materials
- Marine-grade alloy housing for corrosion resistance.
- Stainless steel drum for durability and long service life.
- Sealed mechanical components to support operation in harsh marine environments.
Typical Applications
- Anchor handling with rope-only anchor systems.
- Pot hauling and light lifting duties.
- Davit winch operations for tenders or onboard equipment.
Installation Notes
- Designed for vertical deck mounting.
- Ensure vessel electrical system supports 24 V DC operation at 500 W.
- Use appropriate circuit protection and adequate deck
-
