The Maxwell Capstan 1000 VC 12V 1000W Vertical Capstan (Vetus P102784) is a stainless steel electric capstan designed for rope-handling applications, featuring a 12 V, 1000 W motor, vertical configuration with integrated fluted drum, 50 mm total deck clearance (50TDC), and suitability for rope up to 14 mm, delivering powerful and reliable anchor recovery and rope hauling performance on smaller powerboats and sailboats.
- Description
- Ask a Question
-

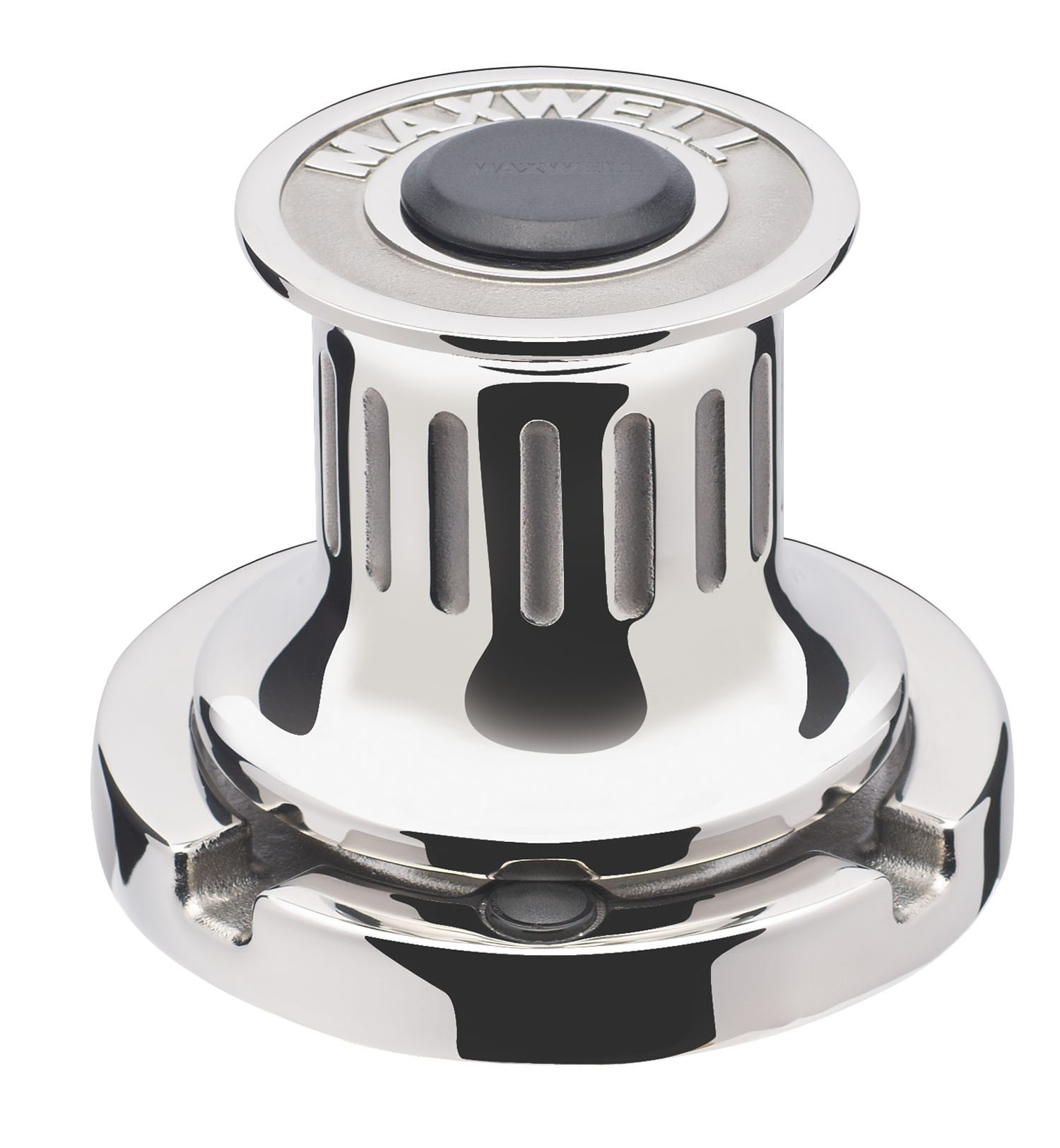

Maxwell Capstan 1000 VC 12V 1000W Vertical Stainless Steel Capstan 50TDC (Vetus P102784)
The Maxwell Capstan 1000 VC is a high-performance electric capstan engineered for efficient and dependable rope handling in marine environments. Designed for simple and cost-effective anchor recovery on smaller powerboats and sailboats, it is also suitable for docking operations and auxiliary rope hauling on larger vessels. The vertical configuration, fluted stainless steel drum, and powerful electric motor ensure smooth, controlled operation under demanding conditions.
Specification Value Manufacturer Vetus Model Capstan 1000 VC Product Type Electric vertical capstan Part Number P102784 Voltage 12 V DC Motor Power 1000 W Configuration Vertical Total Deck Clearance 50 mm (50TDC) Rope / Chain Type Rope only Maximum Rope Diameter Up to 14 mm Drum Integrated fluted warping drum Maximum Pull / Lift Up to 700 kg Line Speed (normal working) 20 m/min Weight Approx. 18 kg
Key Features
- Powerful 1000 W electric motor designed for demanding marine rope-handling tasks.
- Vertical capstan layout suitable for anchor recovery and docking operations.
- Fluted drum design ensures smooth, snag-free rope handling.
- Low-profile 50TDC configuration for installations with limited deck clearance.
- Designed for rope diameters up to 14 mm.
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316).
- Compact and corrosion-resistant gearbox with anodized aluminum spacer.
- Heavy-duty, dual-direction electric motor suitable for marine winch applications.
- Modular design simplifies through-deck installation and servicing.
Typical Applications
- Anchor recovery on smaller powerboats and sailboats.
- Docking and auxiliary rope hauling operations.
- Utility rope handling on larger vessels.
Installation Notes
- Designed primarily for vertical deck mounting.
- Alternative gearbox and motor positions allow flexible installation layouts.
- Can be mounted horizontally for use as a pot hauler or davit winch.
- Ensure vessel electrical system supports 12 V DC operation at 1000 W.
-
