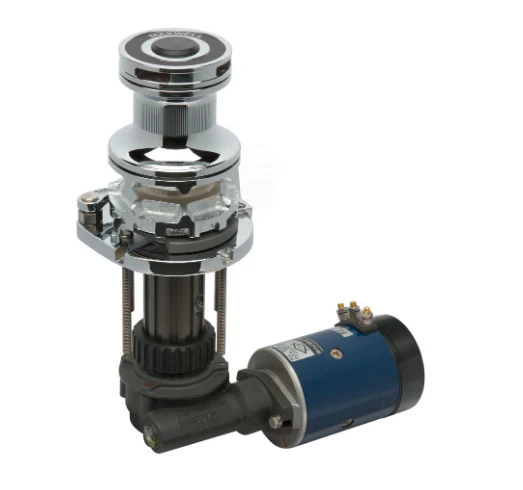

Vetus P105446 - Maxwell Windlass VWRC10-8, 12V, 1000W 150TDC, with Drum

Maxwell VWRC10-8 Vertical Windlass 12V 1000W 150TDC with Drum for 8 mm Chain (Vetus P105446)

The Maxwell VWRC10-8 Vertical Windlass (Vetus P105446) is a powerful and compact electric anchor windlass engineered for combined rope and chain anchor rodes on recreational vessels. Designed with a 12 V, 1000 W motor and 150 mm total deck clearance (150TDC), this model provides dependable anchoring performance with a high static holding capacity and smooth rode handling, including both rope and chain, ideal for boats of approximately up to 13 m in length. :contentReference[oaicite:1]{index=1}

Key Features

• Electric vertical windlass designed for combined rope and chain rodes, offering versatility in anchoring. :contentReference[oaicite:6]{index=6}
• High-output 1000 W motor for efficient anchor retrieval and deployment. :contentReference[oaicite:7]{index=7}
• Integrated rope/chain drum simplifies rode handling in mixed cable systems. :contentReference[oaicite:8]{index=8}
• Manual free-fall and controlled retrieval capability via clutch/brake mechanism (typical for VW/RC series). :contentReference[oaicite:9]{index=9}
• High static holding capacity up to ~1500 kg enhances anchoring security. :contentReference[oaicite:10]{index=10}
• Compact vertical design suits installations in limited deck and anchor locker space. :contentReference[oaicite:11]{index=11}

Construction and Materials

• Marine-grade stainless steel (AISI 316) above-deck components for corrosion resistance. :contentReference[oaicite:12]{index=12}
• Chromed bronze chainwheel for reliable chain engagement. :contentReference[oaicite:13]{index=13}
• Anodized aluminum gearbox and spacer reduce corrosion and weight. :contentReference[oaicite:14]{index=14}
• Heavy-duty dual-direction motor engineered for marine windlass applications. :contentReference[oaicite:15]{index=15}

Performance Attributes

• Suitable for anchoring operations on vessels up to roughly 13 m in length. :contentReference[oaicite:16]{index=16}
• Designed for efficient chain and rope handling with good retrieve and deployment rates. :contentReference[oaicite:17]{index=17}

Installation Notes

• Vertical deck mounting allows streamlined foredeck integration. :contentReference[oaicite:18]{index=18}
• Ensure appropriate electrical protection and wiring for 12 V, 1000 W operation. :contentReference[oaicite:19]{index=19}
• Use a chain stopper or snubber to secure rode loads at rest. :contentReference[oaicite:20]{index=20}
