ID
1281994
$ 1,117.34
1-2 weeks delivery time
-
+
The Maxwell AnchorMax 12V 500W Vertical Capstan (Vetus P100461) is a compact electric capstan designed for rope handling applications on vessels up to 10 m, featuring a 12 V, 500 W motor, vertical configuration with integrated drum, and suitability for 12 mm rope, delivering reliable pulling and lifting performance for anchoring, pot hauling, and davit operations.
- Description
- Ask a Question
-

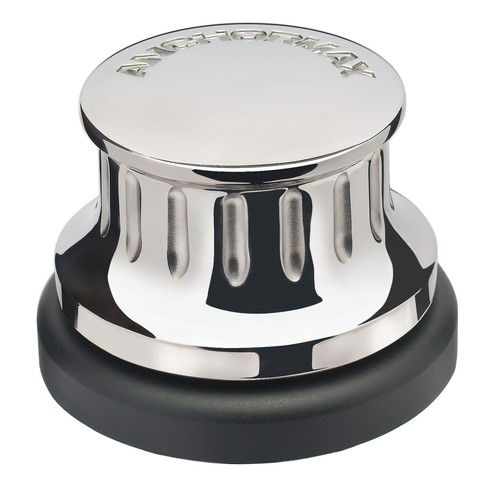

Maxwell AnchorMax 12V 500W Vertical Capstan for 12mm Rope (Vetus P100461)
The Maxwell AnchorMax is a versatile and compact electric vertical capstan designed for a wide range of marine rope-handling applications. Powered by a 12 V, 500 W electric motor, this unit is suitable for use as an anchor winch, pot hauler, or davit winch on vessels up to 10 m in length. Its lightweight construction and integrated drum allow for easy installation while delivering dependable pulling and lifting performance.
Specification Value Manufacturer Vetus Product Type Electric vertical capstan Part Number P100461 Voltage 12 V DC Motor Power 500 W Configuration Vertical Rope / Chain Type Rope only Maximum Rope Diameter 12 mm Drum Integrated Maximum Pull / Lift 300 – 386 kg (depending on operating conditions) Line Speed (normal working) 18 m/min Maximum Line Speed Up to 32 m/min Weight Approx. 5.5 – 5.7 kg Recommended Vessel Size Up to 10 m (33 ft), approx. 4 tonnes
Key Features
- Compact vertical electric capstan for flexible marine rope-handling applications.
- 500 W, 12 V DC motor provides reliable pulling and lifting capability.
- Integrated drum allows controlled rope handling and ease of use.
- Suitable for anchoring, pot hauling, and davit winch operations.
- Lightweight design simplifies installation on small and medium-sized vessels.
Construction and Materials
- Marine-grade alloy housing for corrosion resistance.
- Stainless steel components in high-load and wear areas.
- Designed for long service life in marine environments.
Typical Applications
- Anchor handling using rope-only systems.
- Pot hauling and light lifting operations.
- Davit winch applications on recreational and light-duty commercial vessels.
Installation Notes
- Designed for vertical deck installation.
- Ensure vessel electrical system is suitable for 12 V, 500 W load.
- Recommended to use appropriate circuit protection and deck reinforcement.
-
