The Maxwell RC10-10 24V 1200W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105442) is a powerful automatic rope/chain windlass designed for vessels up to approximately 16 m (53 ft). Featuring a 24 V DC, 1200 W motor and an integrated capstan drum, this RC10 Series model handles 10 mm (3/8") DIN 766 chain paired with 16 mm (5/8") nylon rope. The extended 150 TDC deck clearance ensures versatile installation, while the CW (clockwise) chainwheel configuration delivers secure and efficient anchor handling.
- Description
- Ask a Question
-

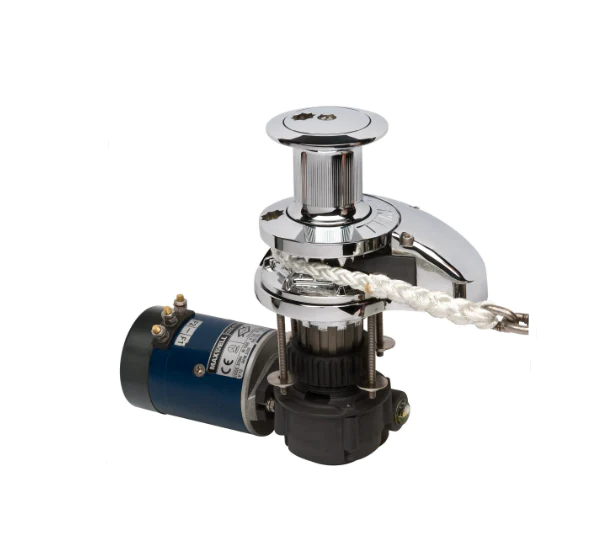

Maxwell RC10-10 24V 1200W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105442)
The Maxwell RC10-10 is a fully automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for reliable anchoring operations on cruising yachts and powerboats. This 24 V DC version features an extended Total Deck Clearance of 150 TDC for installations on thicker decks or boats with specific mounting requirements. Equipped with a fluted stainless steel capstan drum, it allows independent rope handling in addition to standard chain retrieval and deployment.
Constructed from marine-grade stainless steel (AISI 316) and chromed bronze, the RC10-10 delivers excellent corrosion resistance and long-term durability in demanding marine environments. The patented Wave Design™ chainwheel ensures smooth, secure handling of rope, chain, and the rope-to-chain splice during anchoring operations. :contentReference[oaicite:1]{index=1}
Specification Value Vetus Part Number P105442 Model RC10-10 Series Maxwell RC10 Series Voltage 24 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 150 TDC Maximum Pull / Lift 850 kg Static Hold 1500 kg Chain Speed (Retrieval) 24 m/min Rope Speed (Retrieval) 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8") DIN 766
- Chain diameter: 10 mm
- Recommended rope types: 3-strand or 8-plait nylon
- Rope diameter: 16 mm (5/8")
Recommended Vessel Size
- Up to ~16 m (53 ft) cruising yachts and powerboats
Key Features
- Vertical automatic rope/chain anchor windlass with integrated capstan
- 24 V, 1200 W motor for robust anchoring performance
- Extended 150 TDC deck clearance for thicker deck installations
- Wave Design™ chainwheel for smooth and reliable operation
- Marine-grade AISI 316 stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used with a chain stopper and/or alternative snubbing device to relieve load while at anchor.
- A chain stopper or equivalent should also be used to secure the anchor in the fully raised position while underway.
-
