ID
1379562
$ 2,001.46
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
Voltage:
- 12V
- 24V
Power, W
- 1500
Item:
- Without drum
- With drum
The Lewmar VX3 series anchor windlasses are available in GO (Gypsy Only) and GD (Gypsy + Capstan) configurations for boats from 12 to 14 m. Built from stainless steel with composite components, the series features an IP67-certified motor gearbox, hybrid gypsy technology, worm gear transmission, and integrated chain counter sensor. Available with a 1500 W motor in both 12 V and 24 V versions for 8 mm DIN766 or 10 mm ISO chain.
- Description
- Ask a Question
-

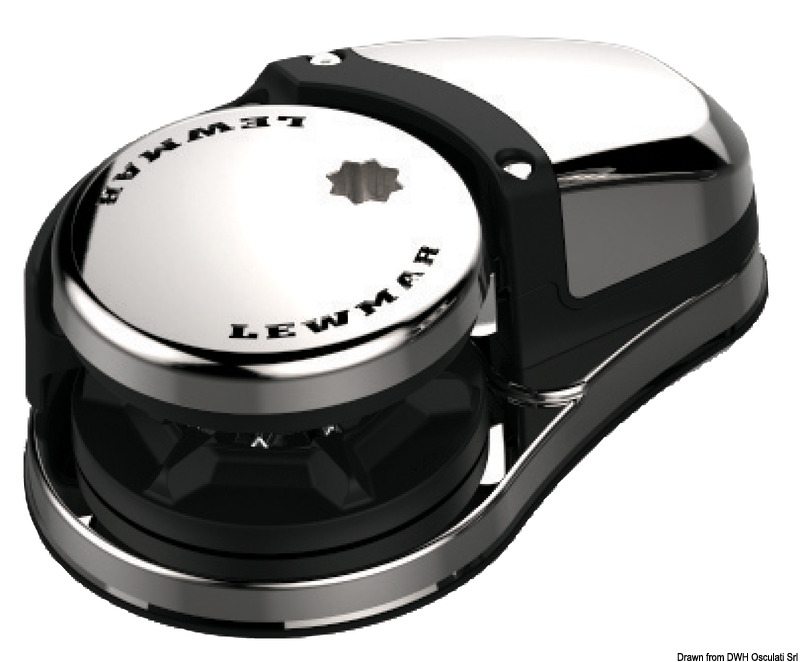

Lewmar VX3 GO & VX3 GD Anchor Windlass Kits 12V & 24V – 1500W, for 8 mm & 10 mm DIN766/ISO Chain
The Lewmar VX3 series is a high-performance vertical anchor windlass designed for boats from 12 to 14 metres. Combining stainless steel construction with lightweight composite components, the VX3 delivers dependable anchoring performance while maintaining quiet operation and excellent durability.
The series is available in two deck configurations: GO (Gypsy Only) and GD (Gypsy with Capstan). Every model features a patent hybrid gypsy, worm gear transmission, IP67-certified motor gearbox, integrated magnet and chain counter sensor (02.355.20), manual clutch release and a robust helical reducer for reliable operation in demanding marine conditions.
VX3 windlasses are powered by a 1500 W motor and are available in both 12 V and 24 V versions. Models are designed for 8 mm DIN766 chain or 10 mm ISO chain with 12–16 mm rope and are supplied complete with deck unit, motor gearbox, solenoid and gypsy.
Features
- Available in GO (Gypsy Only) and GD (Gypsy + Capstan) configurations
- Stainless steel construction with composite components
- Patent hybrid gypsy for rope/chain operation
- Hybrid chain drive for quieter operation
- Worm gear transmission
- IP67-certified motor gearbox
- Integrated magnet and chain counter sensor (02.355.20)
- Manual clutch release
- Robust helical reducer
- Solenoid included
- Suitable for boats from 12 to 14 metres
Available Versions
Osculati Code Lewmar Part No. Model Configuration Voltage Chain Ø 02.599.08 - VX3 GO 12 V 8 mm DIN766 02.599.10 - VX3 GO 12 V 10 mm ISO 02.600.08 - VX3 GD 12 V 8 mm DIN766 02.600.10 - VX3 GD 12 V 10 mm ISO 02.601.08 - VX3 GO 24 V 8 mm DIN766 02.601.10 - VX3 GO 24 V 10 mm ISO 02.602.08 - VX3 GD 24 V 8 mm DIN766 02.602.10 - VX3 GD 24 V 10 mm ISO 76.412.041 69120034 VX3 GO GO 12 V 8 mm DIN766 76.412.042 69120044 VX3 GO GO 12 V 10 mm ISO 76.412.043 69120072 VX3 GD GD 12 V 8 mm DIN766 76.412.044 69120074 VX3 GD GD 12 V 10 mm ISO
Technical Specifications
Specification Value Motor Power 1500 W Voltage Options 12 V / 24 V Compatible Chain 8 mm DIN766 or 10 mm ISO Compatible Rope 12–16 mm Maximum Pull 1175 kg Working Load 294 kg Maximum Line Speed 40 m/min Continuous Line Speed 11 m/min Current Draw 132 A (12 V) / 70 A (24 V) Recommended Circuit Breaker 110 A (12 V) / 90 A (24 V) Recommended Boat Length 12–14 m Weight 16.1–17.1 kg Protection Rating IP67
Package Includes
- Deck unit
- Motor and gearbox
- Gypsy (GO) or Gypsy with Capstan (GD)
- Solenoid
- Integrated magnet and chain counter sensor (02.355.20)
Note: Dashboard switch and circuit breaker are not included and should be ordered separately.
-
