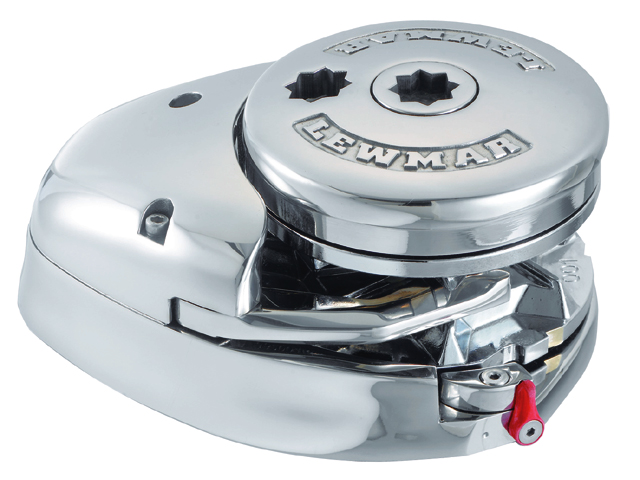

Lewmar V1 GO Vertical Anchor Windlass 12V – Standard & Manual Override (MO), 700W for 6 mm & 8 mm Chain
The Lewmar V1 GO is a professional vertical anchor windlass series developed for sailing yachts and powerboats from approximately 7 to 12 metres. Featuring a precision-cast AISI 316 stainless steel deck unit, compact vertical design and Lewmar's patented FastFit™ installation system, the V1 GO delivers reliable anchoring performance while occupying minimal deck space.
The series includes both Standard and Manual Override (MO) models. Standard versions are available for either 6 mm or 8 mm DIN 766 chain, while the MO version provides emergency manual operation in addition to electric control for increased safety. Every windlass is supplied as a complete installation kit including the motor and gearbox assembly, contactor (solenoid), circuit breaker, rocker switch and clutch release lever.
The sealed IP68-rated motor, integrated Fall Safe anchor locking system and compatibility with the optional Lewmar chain counter sensor make the V1 GO series suitable for demanding marine environments and everyday anchoring operations.
Key Features
- Vertical anchor windlass for rope and chain rodes
- Available in Standard and Manual Override (MO) versions
- Precision-cast AISI 316 stainless steel deck unit
- 12V electric motor
- 700W and 750W motor options
- FastFit™ patented installation system
- Integrated Fall Safe anchor locking mechanism
- IP68 waterproof motor protection
- Compact low-profile vertical installation
- Prepared for optional Lewmar chain counter sensor
- Complete installation kit supplied
- Suitable for boats from 7 to 12 metres
Available Variants
Lewmar Part No. Model Version Voltage Motor Chain Maximum Pull 02.535.06 V1 GO Standard 12 V 700 W 6 mm DIN 766 454 kg 02.535.08 V1 GO Standard 12 V 700 W 8 mm DIN 766 454 kg 6671011198-138 V1 Gypsy Standard 12 V 750 W 8 mm DIN 766 750 daN 6671011698-138 V1 GO MO Manual Override 12 V 700 W 8 mm DIN 766 750 daN
Standard vs Manual Override
Feature Standard Manual Override (MO) Electric Operation Yes Yes Emergency Manual Recovery No Yes FastFit™ Installation Yes Yes Fall Safe Anchor Lock Yes Yes IP68 Motor Protection Yes Yes
Technical Specifications
Specification 700 W Standard 750 W / MO Models Type Vertical Anchor Windlass Vertical Anchor Windlass Voltage 12 V 12 V Motor Power 700 W 700–750 W Compatible Chain 6 mm or 8 mm DIN 766 8 mm DIN 766 Compatible Rope 12–14 mm (6 mm chain)
12–16 mm (8 mm chain)12–16 mm Maximum Pull 454 kg 750 daN Working Load 113 kg 188 daN Maximum Line Speed 19 m/min 19 m/min Continuous Line Speed 13 m/min — Current Draw 80 A — Recommended Circuit Breaker 90 A 90 A Recommended Boat Length 7–12 m 7–12 m Weight 16.5 kg 19.0 kg Protection Rating IP68 IP68 Material Precision-cast AISI 316 stainless steel Precision-cast AISI 316 stainless steel
Package Contents
- Lewmar V1 GO windlass
- Motor and gearbox assembly
- Contactor (solenoid)
- Circuit breaker
- Rocker switch
- Clutch release lever
- Installation hardware
Optional Accessory
- Lewmar Chain Counter Sensor (02.355.20)
Note: The Manual Override (MO) version provides emergency manual operation in the event of electrical power loss while retaining all standard V1 GO features, including FastFit™ installation, Fall Safe anchor locking and IP68 motor protection. Always select the correct version according to your chain size and anchoring requirements.
