ID
1380162
$ 5,073.04
1-2 weeks delivery time
Diameter, mm:
- 10
- 12
Item:
- Without drum
- With drum
The Lewmar V5 series is a heavy-duty vertical anchor windlass for boats from 15 to 18 m, available in GO and GD versions with a 24 V / 2000 W motor. Featuring an AISI 316 stainless steel deck unit, IP68 waterproof motor, and compatibility with 10 mm and 12 mm chain, it delivers up to 1600 kg maximum pull and is prepared for the Lewmar chain counter sensor.
- Description
- Ask a Question
-

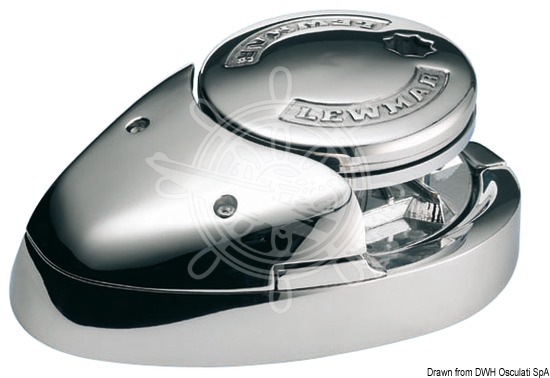

Lewmar V5 GO & GD Vertical Anchor Windlass Kits 24V – 2000W, for 10 mm & 12 mm Chain
The Lewmar V5 series is a professional-grade vertical anchor windlass designed for larger yachts and motorboats from 15 to 18 metres. Manufactured with a precision-cast AISI 316 stainless steel deck unit, it combines high pulling capacity, modern styling and dependable operation in demanding marine environments.
The range is available in GO (Gypsy Only) and GD (Gypsy + Drum) configurations, all powered by a 24 V / 2000 W motor. Every model features an IP68 waterproof motor unit and is prepared for installation of the Lewmar chain counter sensor (02.355.20).
Depending on the selected model, the windlass is compatible with 10 mm or 12 mm chain and 16 mm or 18–20 mm rope. Complete kits include the deck unit, motor and gearbox, remote solenoid and gypsy.
Features
- Vertical anchor windlass for boats from 15 to 18 m
- Available in GO (Gypsy Only) and GD (Gypsy + Drum) versions
- Precision-cast AISI 316 stainless steel deck unit
- 24 V / 2000 W motor
- IP68 waterproof motor unit
- Prepared for Lewmar chain counter sensor (02.355.20)
- Modern low-profile design
- Suitable for rope/chain anchor rodes
Available Versions
Osculati Code Configuration Voltage Motor Chain Ø Rope Ø 02.562.10 GO 24 V 2000 W 10 mm 16 mm 02.562.12 GO 24 V 2000 W 12 mm 18–20 mm 02.563.10 GD 24 V 2000 W 10 mm 16 mm 02.563.12 GD 24 V 2000 W 12 mm 18–20 mm
Technical Specifications
Specification Value Motor Power 2000 W Voltage 24 V Compatible Chain 10 mm or 12 mm Compatible Rope 16 mm or 18–20 mm Maximum Pull 1600 kg Continuous Pull 400 kg Maximum Line Speed 29 m/min Continuous Line Speed 18 m/min Current Draw 60 A Recommended Circuit Breaker 110 A Recommended Boat Length 15–18 m Weight 32–38 kg Protection Rating IP68
Package Includes
- Deck unit
- Motor and gearbox
- Remote solenoid
- Gypsy (GO) or Gypsy with Drum (GD)
Available Spare Parts
Part Code Gypsy 10 mm 02.529.10 Gypsy 12 mm 02.529.12 24 V Solenoid 02.590.02 24 V Motor/Gearbox 02.526.24 Deck Unit (GO) 02.522.01 Deck Unit (GD) 02.522.02 -
