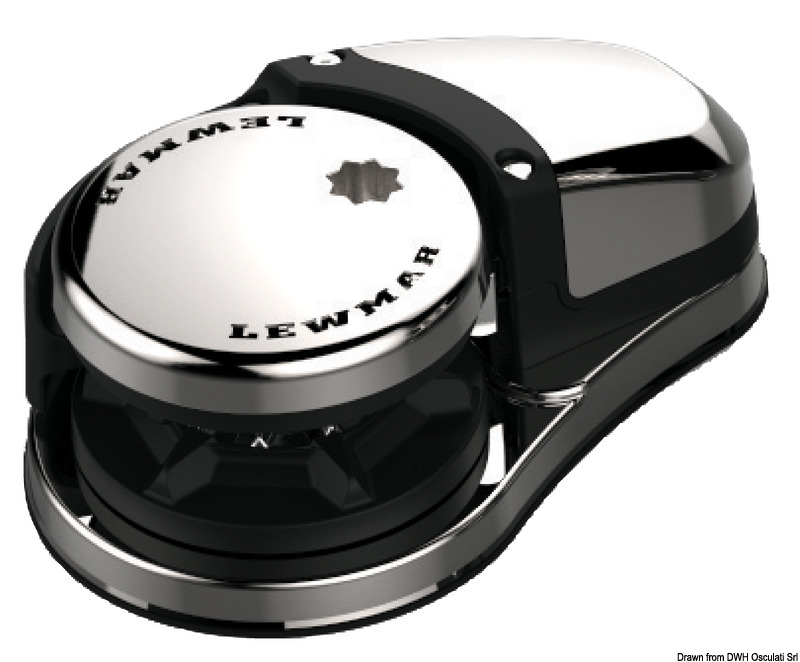

The Lewmar VX2 series anchor windlasses are available in GO (Gypsy Only) and GD (Gypsy + Capstan) configurations for boats from 9 to 13 m. Manufactured from stainless steel with composite components, the series features an IP67-certified motor gearbox, hybrid gypsy technology, worm gear transmission, and integrated chain counter sensor. Available with 700 W or 1000 W motors in both 12 V and 24 V versions for 8 mm and 10 mm DIN766/ISO chain.
- Description
- Ask a Question
-
Lewmar VX2 GO & VX2 GD Anchor Windlass Kits 12V & 24V – 700W & 1000W, for 8 mm & 10 mm DIN766/ISO Chain
The Lewmar VX2 series is a range of premium vertical anchor windlasses developed for boats from 9 to 13 metres. Manufactured from stainless steel with lightweight composite components, the VX2 combines a robust hybrid gypsy, worm gear transmission and IP67-certified motor gearbox to deliver quiet, reliable anchor handling in demanding marine environments.
The series is available in both GO (Gypsy Only) and GD (Gypsy with Capstan) configurations. Every windlass is equipped with an integrated magnet and chain counter sensor (02.355.20), manual clutch release, robust helical reducer and solenoid, while maintaining the same mounting footprint as the previous V2/V2+ generation.
Depending on the selected model, the VX2 series is offered with 700 W or 1000 W motors, in both 12 V and 24 V versions, supporting 8 mm DIN766 chain or 10 mm ISO chain with 12–16 mm rope.
Features
- Available in GO (Gypsy Only) and GD (Gypsy + Capstan) versions
- Stainless steel construction with composite components
- Patent hybrid gypsy suitable for rope/chain operation
- Hybrid chain drive for quieter operation
- Worm gear transmission
- IP67-certified motor gearbox
- Integrated magnet and chain counter sensor (02.355.20)
- Manual clutch release
- Robust helical reducer
- Solenoid included
- Suitable for boats from 9 to 13 metres
Available Versions
Osculati Code Lewmar Part No. Model Configuration Voltage Motor Chain 02.593.06 - VX2 GO 12 V 700 W 6 mm 02.593.08 - VX2 GO 12 V 700 W 8 mm 02.594.06 - VX2 GD 12 V 700 W 6 mm 02.594.08 - VX2 GD 12 V 700 W 8 mm 02.595.08 - VX2 GO 12 V 1000 W 8 mm 02.595.10 - VX2 GO 12 V 1000 W 10 mm ISO 02.596.08 - VX2 GD 12 V 1000 W 8 mm 02.596.10 - VX2 GD 12 V 1000 W 10 mm ISO 02.597.08 - VX2 GO 24 V 1000 W 8 mm 02.597.10 - VX2 GO 24 V 1000 W 10 mm ISO 02.598.08 - VX2 GD 24 V 1000 W 8 mm 02.598.10 - VX2 GD 24 V 1000 W 10 mm ISO 76.412.035 69120022 VX2 GO GO 12 V 700 W 8 mm 76.412.036 69120024 VX2 GO GO 12 V 700 W 10 mm 76.412.037 69120052 VX2 GD GD 12 V 700 W 8 mm 76.412.038 69120054 VX2 GD GD 12 V 700 W 10 mm 76.412.039 69120032 VX2+ GO GO 12 V 1000 W 8 mm 76.412.040 69120034 VX2+ GO GO 12 V 1000 W 10 mm
Technical Specifications
Specification 700 W Models 1000 W Models Voltage 12 V 12 V / 24 V Motor Power 700 W 1000 W Maximum Pull 850 kg 1025 kg Working Load 212–213 kg 256–257 kg Maximum Line Speed 29 m/min 39 m/min Continuous Line Speed 7 m/min 10 m/min Current Draw 120 A 131 A (12 V) / 74 A (24 V) Recommended Circuit Breaker 90 A 110 A (12 V) / 90 A (24 V) Recommended Boat Length 9–12 m 9–13 m Weight 13.9–14.9 kg 16.1–17.1 kg Protection IP67 IP67
Package Includes
- Deck unit
- Motor and gearbox
- Gypsy (GO) or Gypsy with Capstan (GD)
- Solenoid
- Integrated magnet and chain counter sensor (02.355.20)
Note: Dashboard switch and circuit breaker are not included and should be ordered separately.
-
