ID
1380167
$ 9,967.25
1-2 weeks delivery time
Diameter, mm:
- 12
- 14
Item:
- Without drum
- With drum
The Lewmar V6 series is a heavy-duty vertical anchor windlass for boats from 16 to 22 m, powered by a 24 V / 2000 W motor. Available in GO and GD versions for 12 mm or 14 mm chain, it features an AISI 316 stainless steel deck unit, IP68 waterproof motor, and delivers up to 1850 kg maximum pull with a robust worm gearbox.
- Description
- Ask a Question
-

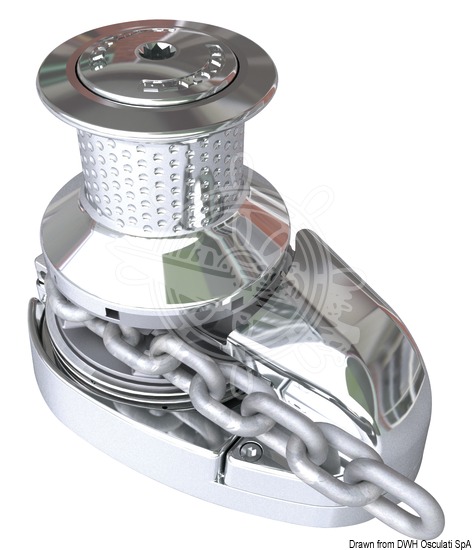

Lewmar V6 GO & GD Vertical Anchor Windlass Kits 24V – 2000W, for 12 mm & 14 mm Chain
The Lewmar V6 series is a professional vertical anchor windlass developed for large sailing yachts and motor yachts from 16 to 22 metres. Designed for heavy-duty anchoring applications, it combines a high-power worm gearbox with a precision-cast AISI 316 stainless steel deck unit for outstanding durability and reliable performance.
Available in GO (Gypsy Only) and GD (Gypsy + Drum) configurations, every model is powered by a 24 V / 2000 W motor and supplied as a complete windlass kit including the deck unit, motor/gearbox, remote solenoid and gypsy. The unit is IP68 waterproof and prepared for installation of the Lewmar chain counter sensor (02.355.20).
The V6 series is designed for 12 mm or 14 mm calibrated anchor chain and delivers exceptional pulling power for larger vessels requiring dependable anchoring performance.
Features
- Heavy-duty vertical anchor windlass for yachts from 16 to 22 m
- Available in GO (Gypsy Only) and GD (Gypsy + Drum) versions
- Powerful 24 V / 2000 W motor
- High-power worm gearbox
- Precision-cast AISI 316 stainless steel deck unit
- IP68 waterproof motor unit
- Prepared for Lewmar chain counter sensor (02.355.20)
- Suitable for 12 mm and 14 mm calibrated anchor chain
Available Versions
Osculati Code Version Voltage Motor Chain Ø 02.565.12 GD 24 V 2000 W 12 mm 02.565.14 GD 24 V 2000 W 14 mm 02.566.12 GO 24 V 2000 W 12 mm 02.566.14 GO 24 V 2000 W 14 mm
Technical Specifications
Specification Value Motor Power 2000 W Voltage 24 V Compatible Chain 12 mm or 14 mm Maximum Pull 1850 kg Continuous Pull 455 kg Maximum Line Speed 18 m/min Continuous Line Speed 4.2 m/min Current Draw 90 A Recommended Circuit Breaker 150 A Recommended Boat Length 16–22 m Weight 55 kg Protection Rating IP68
Package Includes
- Deck unit
- Motor and gearbox
- Remote solenoid
- Gypsy (GO) or Gypsy with Drum (GD)
Available Spare Parts
Part Code Gypsy 12 mm 02.539.12 Gypsy 14 mm 02.539.14 24 V Solenoid 02.590.04 24 V Motor/Gearbox 02.536.24 Deck Unit (GD) 02.533.02 Deck Unit (GO) 02.533.04 -
