The Lewmar VX1L series vertical anchor windlasses are available in GO (Gypsy Only) and GD (Gypsy + Drum/Capstan) configurations for boats from 6 to 13 m. Built from AISI 316 stainless steel and composite materials, the series features an IP67-rated motor, in-line gearbox, integrated chain counter sensor, and manual clutch release. Available with 500 W or 800 W motors for 6/7 mm or 8 mm DIN766 chain.
- Description
- Ask a Question
-

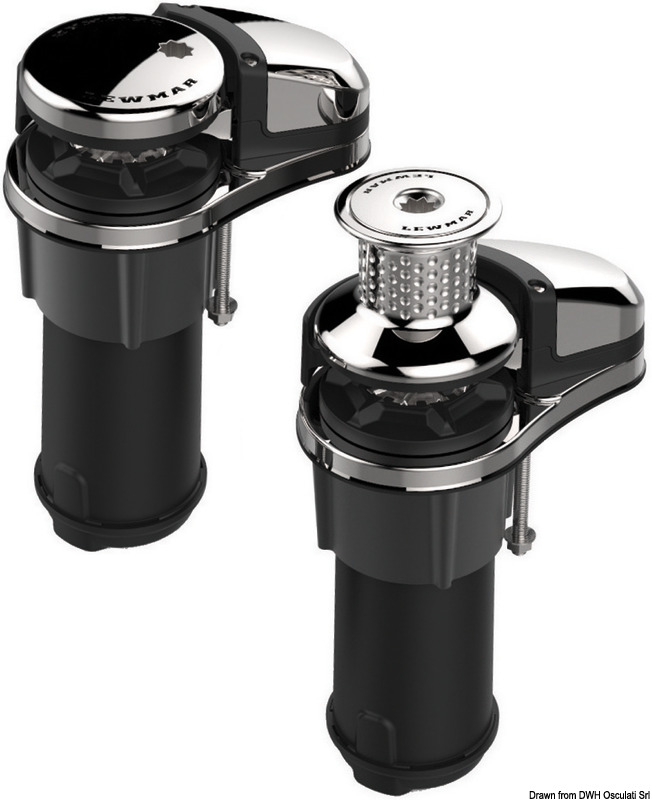

Lewmar VX1L GO & VX1L GD Vertical Anchor Windlass Kits 12V – 500W & 800W, for 6/7 mm & 8 mm DIN766 Chain
The Lewmar VX1L series is a compact vertical anchor windlass designed with the motor positioned below deck, maximizing available storage space while maintaining a clean deck layout. Constructed from AISI 316 stainless steel with durable composite components, the VX1L combines compact dimensions with dependable anchoring performance.
The series is available in GO (Gypsy Only) and GD (Gypsy with Drum/Capstan) configurations. All models feature an efficient in-line motor with worm gear gearbox, manual clutch release, IP67 motor protection, integrated magnet and chain counter sensor (02.355.20), and stainless steel deck components. The mounting dimensions are identical to the Lewmar V700, simplifying upgrades and replacements.
Depending on the selected version, the VX1L is equipped with either a 500 W or 800 W 12 V motor and is compatible with 6/7 mm or 8 mm DIN766 chain with 12–16 mm rope. Every kit includes the deck unit, motor/gearbox, relay (solenoid), chain drive and chain counter sensor. Dashboard switch and circuit breaker are supplied separately.
Features
- Vertical anchor windlass with below-deck motor
- Available in GO (Gypsy Only) and GD (Gypsy + Drum/Capstan) versions
- AISI 316 stainless steel deck components with composite housing
- Efficient in-line motor and worm gear gearbox
- IP67 motor protection
- Integrated magnet and chain counter sensor (02.355.20)
- Manual clutch release / freewheel
- Same mounting dimensions as Lewmar V700
- Compact installation that maximizes locker space
- Suitable for boats from 6 to 13 metres
Available Versions
Osculati Code Lewmar Part No. Model Configuration Motor Chain Ø 02.603.06 69100050 VX1L 500 GO 500 W 6/7 mm - 69100052 VX1L 500 GO 500 W 8 mm - 69100054 VX1L 500 GD 500 W 6/7 mm - 69100056 VX1L 500 GD 500 W 8 mm 02.604.06 69100053 VX1L 800 GO 800 W 6/7 mm 02.604.08 69100053 VX1L 800 GO 800 W 8 mm - 69100055 VX1L 800 GD 800 W 6/7 mm 02.610.08 69100057 VX1L 800 GD 800 W 8 mm
Technical Specifications
Specification 500 W Models 800 W Models Voltage 12 V 12 V Motor Power 500 W 800 W Compatible Chain 6/7 mm or 8 mm DIN766 6/7 mm or 8 mm DIN766 Compatible Rope 12–16 mm 12–16 mm Maximum Pull 650 kg 920 kg Working Load 160 kg 230 kg Maximum Line Speed 20 m/min 21 m/min Continuous Line Speed 5 m/min 5 m/min Current Draw 75 A 105 A Recommended Circuit Breaker 70 A 90 A Recommended Boat Length 6–9 m 9–13 m Weight 8.0–8.5 kg 8.5 kg Protection Rating IP67 IP67
Package Includes
- Deck unit
- Motor and gearbox
- Relay (solenoid)
- Chain drive
- Gypsy (GO) or Gypsy with Drum/Capstan (GD)
- Integrated magnet and chain counter sensor (02.355.20)
Note: Dashboard switch and circuit breaker are not included and should be ordered separately.
-
