ID
1356708
$ 3,532.19
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
Item:
- Without drum
- With drum
The Lewmar V2 vertical anchor windlasses are available in GO and GD configurations for boats from 9 to 13 m. Built with an AISI 316 stainless steel deck unit, FastFit motor mounting, Fall Safe anchor lock and IP68 waterproof motor unit, they use a 12 V / 700 W motor and support 6 mm, 8 mm or 10 mm chain depending on the selected version.
- Description
- Ask a Question
-

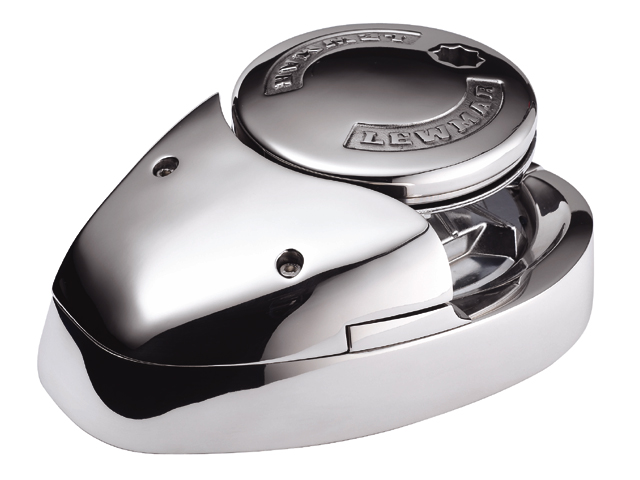

Lewmar V2 GO & V2 GD Vertical Anchor Windlass Kits 12V 700W – AISI 316 Stainless Steel, for 6 mm, 8 mm & 10 mm Chain
The Lewmar V2 series is a compact vertical anchor windlass range designed for boats from 9 to 13 metres. The windlasses are equipped with a precision-cast AISI 316 stainless steel deck unit and a 12 V, 700 W motor, providing reliable anchoring performance in a compact deck layout.
The series is available in two configurations: GO with gypsy only, and GD with gypsy and drum. The V2 features Lewmar FastFit motor mounting for quicker installation, a Fall Safe anchor lock, rope/chain gypsy, and an IP68 waterproof motor unit. The windlass is also ready for installation of the Lewmar chain counter sensor 02.355.20.
Depending on the selected model, the V2 supports 6 mm, 8 mm or 10 mm chain with rope sizes from 12 to 16 mm. The complete kit includes deck unit, motor gearbox, solenoid and gypsy.
Features
- Vertical anchor windlass for boats from 9 to 13 m
- Available in GO and GD versions
- AISI 316 stainless steel deck unit
- Rope/chain gypsy
- FastFit patented motor mounting system
- Fall Safe anchor lock
- IP68 waterproof motor unit
- Ready for chain counter sensor 02.355.20
- Modern compact design
Available Versions
Osculati Code Lewmar Part No. Model Configuration Voltage Motor Chain Ø Rope Ø 02.550.06 - V2 GO 12 V 700 W 6 mm 12–14 mm 02.550.08 - V2 GO 12 V 700 W 8 mm 12–16 mm 02.551.06 - V2 GD 12 V 700 W 6 mm 12–14 mm 02.551.08 - V2 GD 12 V 700 W 8 mm 12–16 mm 76.412.001 6672011198-138 V2 Gypsy GO 12 V 700 W 8 mm - 76.412.002 6672011108-138 V2 Gypsy GO 12 V 700 W 10 mm - 76.412.003 6672021198-138 V2 Gypsy/Drum GD 12 V 700 W 8 mm - 76.412.004 6672021108-138 V2 Gypsy/Drum GD 12 V 700 W 10 mm -
Technical Specifications
Specification Value Type Vertical Anchor Windlass Deck Unit Material AISI 316 Stainless Steel Voltage 12 V Motor Power 700 W Maximum Pull 650 kg / 850 kg Working Load 163 kg / 213 kg Maximum Recovery Speed 21 m/min Continuous Recovery Speed 14 m/min Current Draw 80 A Recommended Circuit Breaker 90 A Recommended Boat Length 9–13 m Weight 19–22 kg Protection Rating IP68
Package Includes
- Deck unit
- Motor gearbox
- Solenoid
- Gypsy
Available Spare Parts
Part Code Only deck unit for GO version 02.511.01 Only deck unit for GD version 02.511.02 Only motor/gearbox 02.515.12 Only solenoid 02.590.01 Only gypsy for 6 mm chain 02.519.06 Only gypsy for 8 mm chain 02.519.08 Documents
-
