ID
1380153
$ 4,965.71
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
Voltage:
- 12V
- 24V
Item:
- Without drum
- With drum
The Lewmar V4 series vertical anchor windlasses are available in GO and GD configurations with 12 V / 1600 W or 24 V / 2000 W motors for boats from 13 to 16 m. Featuring an AISI 316 stainless steel deck unit, IP68 waterproof motor, and compatibility with 8 mm and 10 mm chain, the series delivers up to 1500 kg maximum pull and is prepared for the Lewmar chain counter sensor.
- Description
- Ask a Question
-

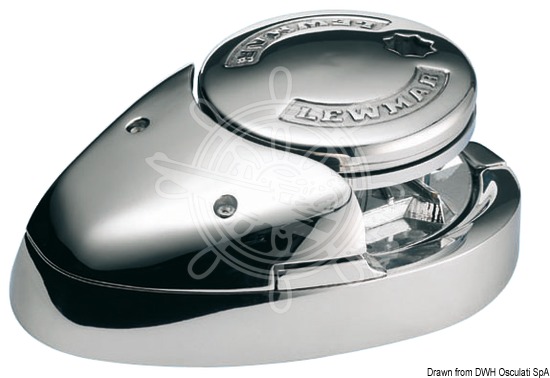

Lewmar V4 GO & V4 GD Vertical Anchor Windlass Kits 12V & 24V – 1600W & 2000W, for 8 mm & 10 mm Chain
The Lewmar V4 series is a heavy-duty vertical anchor windlass designed for powerboats and sailing yachts from 13 to 16 metres. Manufactured with a precision-cast AISI 316 stainless steel deck unit, the V4 combines high pulling capacity with a modern, compact design for demanding anchoring applications.
The range is available in GO (Gypsy Only) and GD (Gypsy + Drum) configurations with 12 V / 1600 W and 24 V / 2000 W motor options. Every model features an IP68 waterproof motor unit and is prepared for installation of the Lewmar chain counter sensor (02.355.20).
Depending on the selected version, the V4 supports 8 mm or 10 mm chain with 12–14 mm or 16 mm rope. Complete kits include the deck unit, motor and gearbox, remote solenoid and gypsy.
Features
- Vertical anchor windlass for boats from 13 to 16 m
- Available in GO (Gypsy Only) and GD (Gypsy + Drum) versions
- Precision-cast AISI 316 stainless steel deck unit
- IP68 waterproof motor unit
- Prepared for Lewmar chain counter sensor (02.355.20)
- Modern compact design
- Rope/chain gypsy
- Available with 1600 W (12 V) or 2000 W (24 V) motors
Available Versions
Osculati Code Configuration Voltage Motor Chain Ø Rope Ø 02.557.08 GO 12 V 1600 W 8 mm 12–14 mm 02.557.10 GO 12 V 1600 W 10 mm 16 mm 02.558.08 GD 12 V 1600 W 8 mm 12–14 mm 02.558.10 GD 12 V 1600 W 10 mm 16 mm 02.560.08 GO 24 V 2000 W 8 mm 12–14 mm 02.560.10 GO 24 V 2000 W 10 mm 16 mm 02.561.08 GD 24 V 2000 W 8 mm 12–14 mm 02.561.10 GD 24 V 2000 W 10 mm 16 mm
Technical Specifications
Specification 12 V Models 24 V Models Motor Power 1600 W 2000 W Compatible Chain 8 mm or 10 mm 8 mm or 10 mm Compatible Rope 12–14 mm / 16 mm 12–14 mm / 16 mm Maximum Pull 1250 kg 1500 kg Continuous Pull 313 kg 375 kg Maximum Line Speed 25 m/min 27 m/min Continuous Line Speed 15 m/min 16 m/min Current Draw 125 A 70 A Recommended Circuit Breaker 150 A 110 A Recommended Boat Length 13–16 m 13–16 m Weight 28–30 kg 28–30 kg Protection Rating IP68 IP68
Package Includes
- Deck unit
- Motor and gearbox
- Remote solenoid
- Gypsy (GO) or Gypsy with Drum (GD)
Available Spare Parts
Part 12 V 24 V Deck Unit (GO) 02.522.01 02.522.01 Deck Unit (GD) 02.522.02 02.522.02 Motor/Gearbox 02.525.12 02.525.24 Solenoid 02.590.03 02.590.04 Gypsy 8 mm 02.529.08 02.529.08 Gypsy 10 mm 02.529.10 02.529.10 -
