ID
1379541
$ 1,638.66
1-2 weeks delivery time
Diameter, mm:
- 6/7
- 8
Power, W
- 300
- 500
Item:
- Without drum
- With drum
The Lewmar VX1 series anchor windlasses are available in GO (Gypsy Only) and GD (Gypsy + Capstan) configurations for boats from 6 to 9 m. Manufactured from stainless steel with lightweight composite components, they feature an IP67-certified motor gearbox, hybrid gypsy technology, and worm gear transmission for quiet, reliable operation. Available in 300 W and 500 W versions for 6 mm, 6/7 mm, or 8 mm DIN766 chain.
- Description
- Ask a Question
-

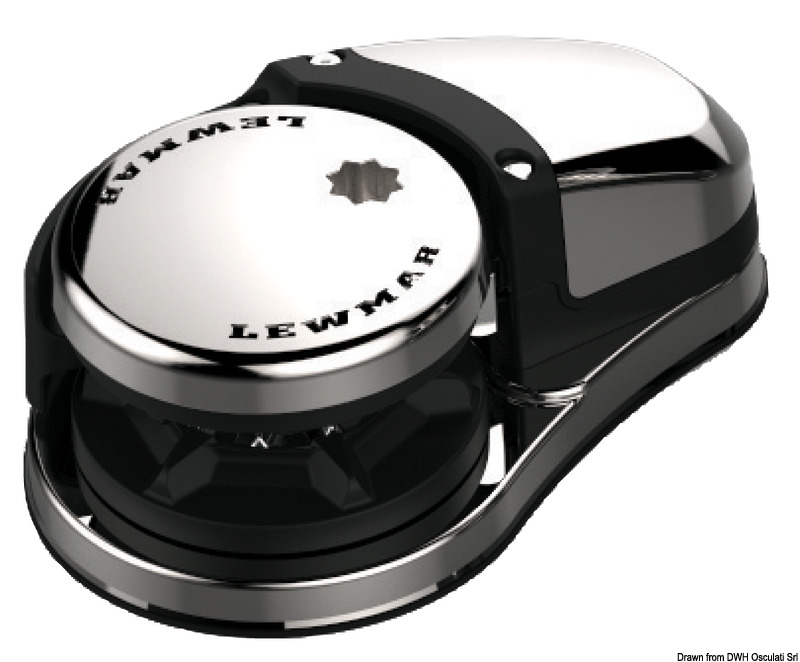

Lewmar VX1 GO & VX1 GD Anchor Windlass Kits 12V – 300W & 500W, for 6 mm, 6/7 mm & 8 mm DIN766 Chain
The Lewmar VX1 series is a new generation of vertical anchor windlasses engineered for boats from 6 to 9 metres. Combining stainless steel construction with lightweight composite components, the VX1 series offers quiet operation, improved chain handling and dependable performance in demanding marine environments.
The series is available in two deck configurations: GO (Gypsy Only) and GD (Gypsy with Capstan). A patent-pending hybrid gypsy, hybrid chain drive and worm gear transmission provide smoother chain throughput, reduced operating noise and excellent reliability. The IP67-certified motor gearbox and non-sparking motor protection further enhance durability and safety.
Depending on the selected model, the VX1 is available with 300 W or 500 W motors and supports 6 mm, 6/7 mm or 8 mm DIN766 chain. Every kit includes the deck unit, motor/gearbox, relay (solenoid), chain drive and integrated chain counter sensor. Switches and circuit breakers are supplied separately.
Features
- Available in GO (Gypsy Only) and GD (Gypsy + Capstan) configurations
- Stainless steel construction with lightweight composite components
- Patent-pending hybrid gypsy for quieter operation
- Hybrid chain drive for improved chain throughput
- Worm gear transmission for reliable and safe operation
- IP67-certified motor gearbox
- Non-sparking motor protection
- Integrated magnet and chain counter sensor
- Manual clutch release
- Same mounting footprint as the Lewmar V1 series
- Suitable for boats from 6 to 9 metres
Available Versions
Osculati Code Lewmar Part No. Model Configuration Motor Chain Ø 02.590.06 - VX1 GO Gypsy Only 300 W 6 mm 02.591.06 - VX1 GO Gypsy Only 500 W 6/7 mm 02.591.08 - VX1 GO Gypsy Only 500 W 8 mm 76.412.031 69100021 VX1 GO Gypsy Only 500 W 6/7 mm 76.412.032 69100023 VX1 GO Gypsy Only 500 W 8 mm 76.412.033 69100025 VX1 GD Gypsy + Capstan 500 W 6/7 mm 76.412.034 69100027 VX1 GD Gypsy + Capstan 500 W 8 mm
Technical Specifications
Specification 300 W Model 500 W Models Voltage 12 V 12 V Motor Power 300 W 500 W Maximum Pull 400 kg 675 kg Working Load 100 kg 169 kg Maximum Line Speed 25 m/min 25 m/min Weight 12.5 kg 12.5–13.5 kg Recommended Circuit Breaker 50 A 70 A Recommended Boat Length 6–9 m 6–9 m Protection IP67 Motor Gearbox IP67 Motor Gearbox
Package Includes
- Deck unit
- Motor and gearbox
- Relay (solenoid)
- Chain drive
- Gypsy
- Integrated magnet and chain counter sensor
Note: Dashboard switch and circuit breaker are not included and must be ordered separately.
Documents
Lewmar VX manual Size: 11,2 Mb -
