The Lewmar V3 vertical anchor windlasses are available in GO and GD configurations with 12 V or 24 V power for boats from 12 to 16 m. Featuring an AISI 316 stainless steel deck unit, FastFit installation, Fall Safe anchor lock and an IP68 waterproof motor unit, the series supports 8 mm and 10 mm chain and delivers up to 1025 kg maximum pull.
- Description
- Ask a Question
-
Lewmar V3 GO & V3 GD Vertical Anchor Windlass Kits 12V & 24V 1000W – AISI 316 Stainless Steel, for 8 mm & 10 mm Chain

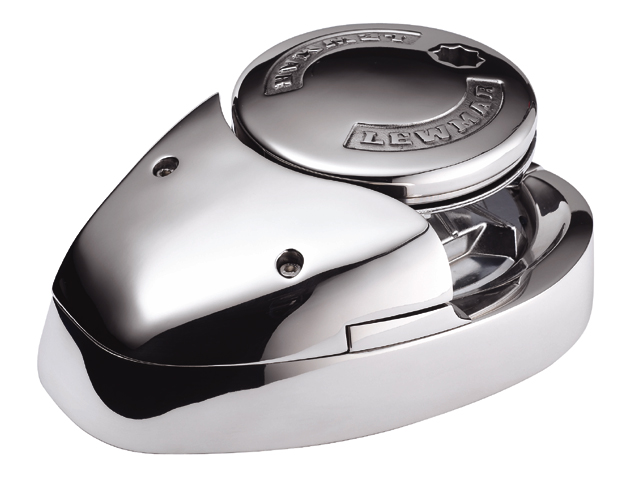

The Lewmar V3 series is a premium vertical anchor windlass designed for sailing yachts and powerboats from 12 to 16 metres. Built around a precision-cast AISI 316 stainless steel deck unit, the V3 combines compact dimensions, modern styling and reliable anchoring performance.
The range is available in GO (Gypsy Only) and GD (Gypsy + Drum) configurations with both 12 V and 24 V power options. Every windlass features Lewmar's patented FastFit motor mounting system, integrated Fall Safe anchor lock, IP68 waterproof motor unit and is prepared for installation of the Lewmar chain counter sensor (02.355.20).
Powered by a 1000 W motor, the V3 is compatible with 8 mm and 10 mm chain using 12–16 mm rope. Complete windlass kits include the deck unit, motor gearbox, solenoid and gypsy.
Features
- Vertical anchor windlass for boats from 12 to 16 m
- Available in GO (Gypsy Only) and GD (Gypsy + Drum) versions
- Precision-cast AISI 316 stainless steel deck unit
- FastFit patented installation system
- Integrated Fall Safe anchor lock
- IP68 waterproof motor unit
- Ready for Lewmar chain counter sensor 02.355.20
- Modern compact design
- Rope/chain gypsy
Available Versions
Osculati Code Lewmar Part No. Model Configuration Voltage Motor Chain Ø 02.553.08 - V3 GO 12 V 1000 W 8 mm 02.553.10 - V3 GO 12 V 1000 W 10 mm 02.554.08 - V3 GD 12 V 1000 W 8 mm 02.554.10 - V3 GD 12 V 1000 W 10 mm 02.555.08 - V3 GO 24 V 1000 W 8 mm 02.555.10 - V3 GO 24 V 1000 W 10 mm 02.556.08 - V3 GD 24 V 1000 W 8 mm 02.556.10 - V3 GD 24 V 1000 W 10 mm 76.412.011 6672211198-139 V3 Gypsy GO 12 V 1000 W 8 mm 76.412.012 6672211108-139 V3 Gypsy GO 12 V 1000 W 10 mm 76.412.013 6672221198-139 V3 Gypsy/Drum GD 12 V 1000 W 8 mm 76.412.014 6672221108-139 V3 Gypsy/Drum GD 12 V 1000 W 10 mm 76.412.015 6672222108-142 V3 Gypsy/Drum GD 24 V 1000 W 10 mm 76.412.016 6672212108-142 V3 Gypsy GO 24 V 1000 W 10 mm
Technical Specifications
Specification 12 V Models 24 V Models Motor Power 1000 W 1000 W Compatible Chain 8 mm or 10 mm 8 mm or 10 mm Compatible Rope 12–16 mm 12–16 mm Maximum Pull 890 kg 1020 kg Working Load 223 kg 223 kg Maximum Line Speed 28 m/min 30 m/min Continuous Line Speed 18 m/min 20 m/min Current Draw 85 A 60 A Recommended Circuit Breaker 110 A 90 A Recommended Boat Length 12–16 m 12–16 m Weight 21–23 kg 21–23 kg Protection Rating IP68 IP68
Package Includes
- Deck unit
- Motor and gearbox
- Solenoid
- Gypsy (GO) or Gypsy with Drum (GD)
Available Spare Parts
Part 12 V 24 V Deck Unit (GO) 02.511.01 02.511.01 Deck Unit (GD) 02.511.02 02.511.02 Motor/Gearbox 02.516.12 02.516.24 Solenoid 02.590.01 02.590.02 Gypsy 8 mm 02.519.08 02.519.08 Gypsy 10 mm 02.519.10 02.519.10 Documents
Lewmar V3 manual Size: 7,3 Mb -
