ID
1292991
$ 1,589.13
1-2 weeks delivery time
-
+
The Lewmar V700 Vertical Anchor Windlass is a compact vertical anchoring system designed for boats from 6 to 9 m. Manufactured from polished AISI 316 stainless steel, it features an IP67 waterproof rating, an integrated fall-safe chain lock, and a shock-resistant motor cover for dependable operation in marine environments. Powered by a 12 V / 320 W motor, it is compatible with 6 mm chain and 12 mm rope, delivering a maximum pull of 320 kg, a continuous working load of 79 kg, and line speeds up to 25 m/min.
- Description
- Ask a Question
-

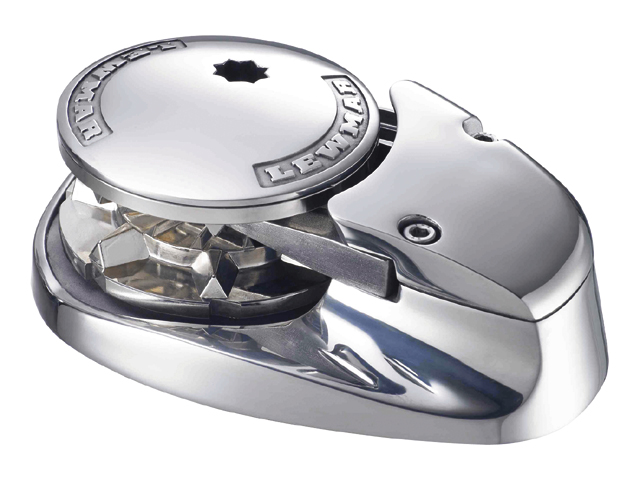

Lewmar V700 Vertical Anchor Windlass 12V 320W – AISI 316 Stainless Steel, IP67, for 6 mm Chain & 12 mm Rope - Osculati 02.534.06
The Lewmar V700 Vertical Anchor Windlass is designed for reliable anchor handling on boats from 6 to 9 metres. Its compact vertical configuration minimizes deck intrusion, requiring only a hole saw for installation while positioning the motor below deck for a clean appearance.
Manufactured from polished AISI 316 stainless steel, the windlass provides excellent corrosion resistance for marine environments. It features an IP67 waterproof rating, a shock-resistant motor cover, and an integrated fall-safe chain lock built into the windlass housing for additional anchoring security.
Powered by a 12 V, 320 W motor, the Lewmar V700 is suitable for 6 mm anchor chain and 12 mm rope. It delivers a maximum pull of 320 kg, a continuous pull of 79 kg, and line speeds up to 25 m/min. The unit is prepared for a chain counter sensor and includes the required installation accessories for convenient fitting.
Features
- Vertical anchor windlass for boats from 6 to 9 m
- Polished AISI 316 stainless steel construction
- IP67 waterproof protection
- Integrated fall-safe chain lock
- Shock-resistant motor cover
- Compatible with 6 mm chain and 12 mm rope
- Prepared for chain counter sensor installation
- Easy installation with minimal deck modification
- Complete installation kit included
Package Includes
- Lewmar V700 vertical windlass
- Contactor (solenoid)
- Control switch
- Clutch release lever
- Fixing pins
- Installation template
- Seal
- Multilingual instructions

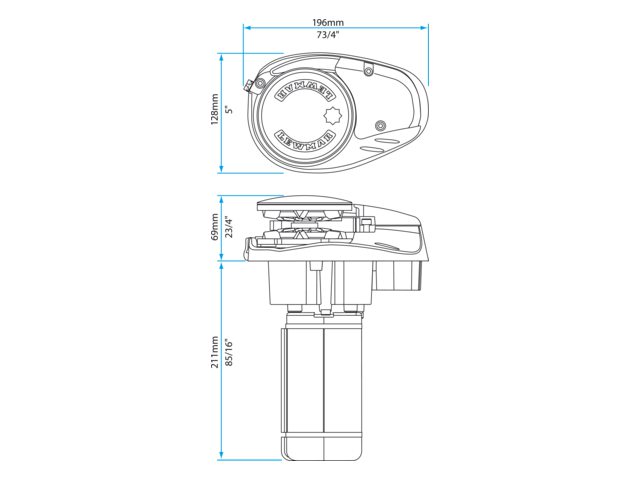

Technical Specifications
Specification Value Part Number 02.534.06 Model Lewmar V700 Type Vertical Anchor Windlass Material Polished AISI 316 Stainless Steel Voltage 12 V Motor Power 320 W Compatible Chain 6 mm Compatible Rope 12 mm Maximum Pull 320 kg Continuous Pull 79 kg Maximum Line Speed 25 m/min Continuous Line Speed 15 m/min Current Draw 45 A Recommended Circuit Breaker 35 A Recommended Boat Length 6–9 m Protection Rating IP67 Weight 6.5 kg
Key Benefits
- Compact vertical design with concealed below-deck motor.
- Marine-grade polished AISI 316 stainless steel construction.
- Integrated fall-safe chain lock for enhanced anchor security.
- IP67-rated protection against water ingress.
- Complete installation kit supplied.
- Prepared for optional chain counter sensor integration.
Documents
Manual Lewmar V700 Size: 1,7 Mb -
