ID
1293007
$ 2,078.38
1-2 weeks delivery time
-
+
The Lewmar Pro-Sport 550 Horizontal Anchor Windlass is designed for boats from 6 to 9 m and features a sturdy central aluminium body with durable composite side covers. Powered by a 12 V / 150 W motor, it is suitable for 6 mm chain and 12 mm rope, delivering a maximum pull of 250 kg, continuous pull of 63 kg, and line speeds up to 30 m/min. The windlass draws 20 A and requires 50 A magnetothermal protection. Installation is simple and requires only one hole for chain passage.
- Description
- Ask a Question
-

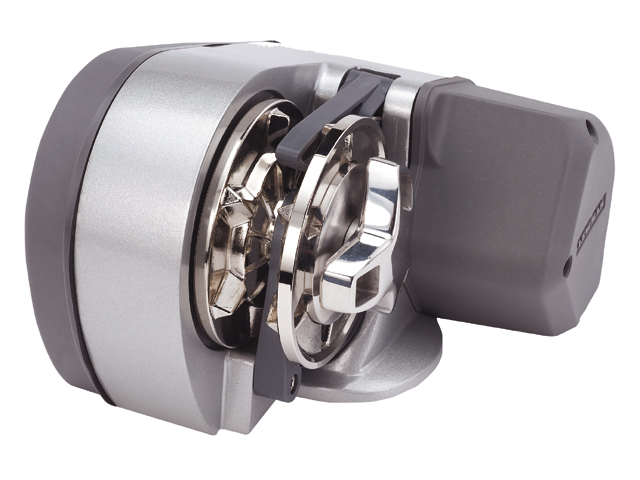

Lewmar Pro-Sport 550 Horizontal Anchor Windlass 12V 150W – for 6 mm Chain & 12 mm Rope
The Lewmar Pro-Sport 550 Horizontal Anchor Windlass is designed for efficient anchor handling on boats from 6 to 9 metres. It features a sturdy central aluminium body combined with durable composite side covers, providing a compact and practical solution for onboard anchoring systems.
The windlass is powered by a 12 V, 150 W motor and is suitable for 6 mm chain and 12 mm rope. It delivers a maximum pull of 250 kg and a continuous working load of 63 kg, with line speeds up to 30 m/min and continuous line speed of 25 m/min.
Installation is simple and requires only one hole for chain passage. The unit is supplied as a complete kit with dashboard switch, magnetothermal protection, clutch release lever, quick-mount studs, fastening pins, seal, installation tool, template and gasket, and instructions in 6 languages.
Features
- Horizontal anchor windlass for boats from 6 to 9 m
- Sturdy central aluminium body
- Durable composite side covers
- Suitable for 6 mm chain and 12 mm rope
- 12 V / 150 W motor
- Maximum pull of 250 kg
- Continuous pull of 63 kg
- Maximum line speed of 30 m/min
- Simple installation requiring only one hole for chain passage
- Complete installation kit included
Package Includes
- Lewmar Pro-Sport anchor windlass
- Dashboard switch
- Magnetothermal protection
- Clutch release lever
- Quick-mount studs
- Fastening pins
- Seal
- Installation tool
- Template and gasket
- Instructions in 6 languages
Technical Specifications
Specification Value Part Number 02.521.06 Model Lewmar Pro-Sport 550 Type Horizontal Anchor Windlass Voltage 12 V Motor Power 150 W Compatible Chain 6 mm Compatible Rope 12 mm Maximum Pull 250 kg Continuous Pull 63 kg Maximum Line Speed 30 m/min Continuous Line Speed 25 m/min Current Draw 20 A Recommended Magnetothermal Protection 50 A Recommended Boat Length 6–9 m Weight 6.5 kg Documents
Lewmar Pro Sport Horizontal Anchor Windlass 12V Size: 384,8 KbLewmar Pro Sport manual Size: 2,6 Mb -
