The Lewmar PRO-Series 700 & PRO-Series 1000 Horizontal Anchor Windlasses are designed for reliable anchoring on boats from 9 to 12 m. Manufactured from mirror-polished AISI 316 stainless steel, both models are powered by a 12 V / 700 W motor, delivering a maximum pull of 454 kg, a continuous working load of 113 kg, and line speeds up to 32 m/min. The PRO-Series 700 is configured for 6 mm chain with 12 mm rope, while the PRO-Series 1000 is designed for 8 mm chain with 14/16 mm rope.
- Description
- Ask a Question
-

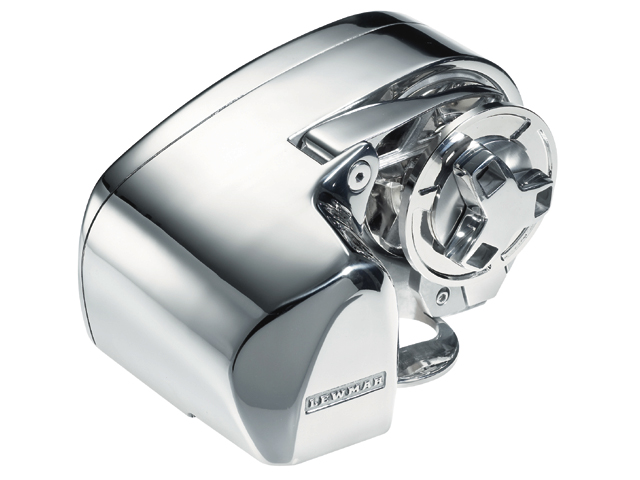

Lewmar PRO-Series 700 & PRO-Series 1000 Horizontal Anchor Windlasses 12V – AISI 316 Stainless Steel, for 6 mm & 8 mm Chain
The Lewmar PRO-Series horizontal windlasses are designed to provide dependable anchor handling for boats from 9 to 12 metres. Manufactured from mirror-polished AISI 316 stainless steel, they combine corrosion resistance, compact dimensions, and reliable performance with a complete installation package for fast and straightforward fitting.
Both the PRO-Series 700 and PRO-Series 1000 are powered by a 12 V, 700 W motor and deliver a maximum pull of 454 kg with a continuous working load of 113 kg. The windlasses operate at line speeds up to 32 m/min and feature an integrated manual ascent system operated via the supplied multifunction clutch release lever.
The PRO-Series 700 is designed for 6 mm chain with 12 mm rope, while the PRO-Series 1000 is configured for 8 mm chain with 14/16 mm rope. Both versions include a control switch, contactor, magnetothermal protection, quick-mount studs, installation template, seal, and multilingual installation instructions.
Features
- Horizontal anchor windlasses for boats from 9 to 12 m
- Mirror-polished AISI 316 stainless steel housing
- 12 V / 700 W motor
- Maximum pull: 454 kg
- Continuous working load: 113 kg
- Maximum line speed: 32 m/min
- Continuous line speed: 27 m/min
- Integrated manual ascent system with multifunction clutch release lever
- Complete installation package included
- Designed for quick installation and easy assembly
Available Versions
Model Code Chain Ø Rope Ø Recommended Boat Length Lewmar PRO-Series 700 02.531.06 6 mm 12 mm 9–12 m Lewmar PRO-Series 1000 02.531.08 8 mm 14/16 mm 9–12 m
Technical Specifications
Specification Value Construction Mirror-Polished AISI 316 Stainless Steel Type Horizontal Anchor Windlass Voltage 12 V Motor Power 700 W Maximum Pull 454 kg Continuous Pull 113 kg Maximum Line Speed 32 m/min Continuous Line Speed 27 m/min Current Draw 50 A Recommended Circuit Breaker 70 A Recommended Boat Length 9–12 m Weight 9.5 kg
Package Includes
- Lewmar PRO-Series horizontal windlass
- Control switch
- Contactor
- Magnetothermal protection
- Multifunction clutch release lever
- Quick-mount studs
- Installation template
- Seal
- Instructions in 6 languages
Available Spare Parts
Part Code Gypsy for PRO-Series 700 (6 mm chain) 02.531.86 Gypsy for PRO-Series 1000 (8 mm chain) 02.531.88 Clutch Release Lever 02.531.99 Remote Circuit Breaker 02.590.21 -
