ID
1304405
$ 61.76
1-2 weeks delivery time
-
+
The Wichard 1406 is a 12 mm captive pin D-shackle in 316L stainless steel, designed with a pin that remains attached and locks securely, resistant to vibration, supporting one-handed use and high working and breaking loads for industrial applications.
- Description
- Ask a Question
-

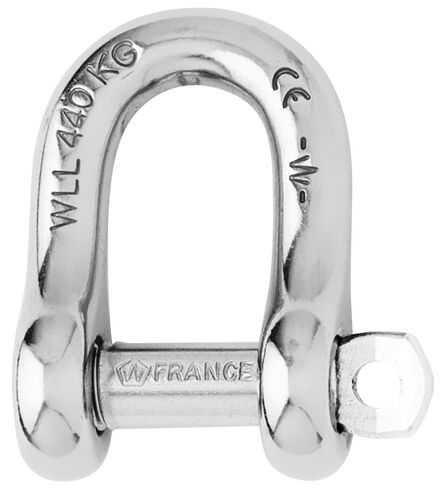

Wichard 1406 - Captive Pin D-Shackle 12 mm
The Wichard 1406 captive pin D-shackle is crafted from premium 316L stainless steel to ensure reliability in demanding environments. The pin remains attached to the body even when open, and its locking design secures it in position. Resistant to loosening through vibration, this shackle offers high load capacity, one-handed operation, and CE marking compliance for industrial use.
- Made from forged 316L stainless steel
- Pin stays attached when opened
- Locking mechanism holds pin securely
- Prevents loosening from vibration
- Exceptional working and breaking loads
- One-handed use for better safety
- WLL for industrial applications (lifting, etc.)
- CE marking approved
- Applications: standard shackle, block and head attachment
- Materials: 316 stainless steel grade
- Working load (kg): 2100
- WLL (kg): 1400
- Breaking load (kg): 7000
- Weight (g): 188

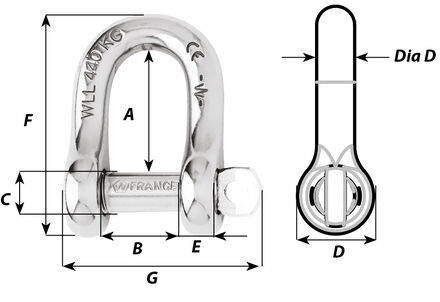

- A (mm): 39
- B (mm): 24
- C (mm): 13
- D (mm): 24
- D diameter (mm): 12
- E (mm): 11
- F (mm): 69
- G (mm): 62
- Item number: WR1406
-
