The Wichard 1405 is a 10 mm captive pin D-shackle forged in 316L stainless steel, with a pin that locks into position to prevent vibration loosening, allowing one-handed operation and delivering high working and breaking loads for industrial and marine applications.
- Description
- Ask a Question
-

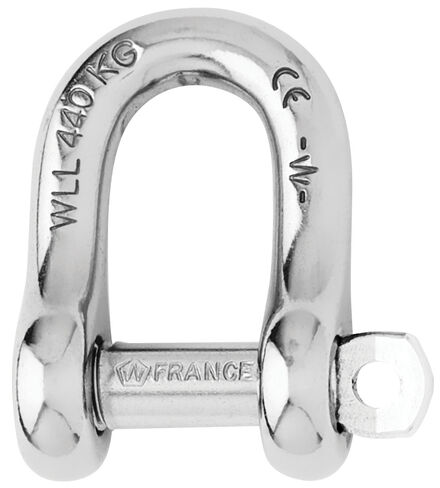

Wichard 1405 - Captive Pin D-Shackle 10 mm
The Wichard 1405 captive pin D-shackle is a durable connection solution forged from 316L stainless steel, ensuring strength and long-lasting performance. Designed with safety in mind, its pin remains attached to the body even when opened and locks securely into position to prevent loosening caused by vibration. It supports one-handed operation and meets CE marking requirements, making it suitable for various industrial and marine applications.
- Forged in 316L stainless steel
- Pin stays connected to the body at all times
- Pin locks into one of the indentations for secure use
- No risk of loss due to vibration
- High working and breaking loads
- Can be operated single-handedly for enhanced safety
- WLL for industrial applications (lifting, etc.)
- CE marking approved
- Applications: standard shackle use, attachment to blocks, heads, and similar
- Materials: 316 stainless steel grade
- Working load (kg): 1560
- WLL (kg): 1040
- Breaking load (kg): 5200
- Weight (g): 114

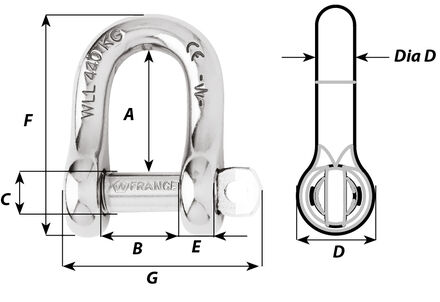

- A (mm): 33
- B (mm): 20
- C (mm): 11
- D (mm): 21
- D diameter (mm): 10
- E (mm): 9
- F (mm): 58
- G (mm): 53
- Item number: WR1405
-
