ID
1304411
$ 17.03
1-2 weeks delivery time
-
+
The Wichard 1422 D-Clasp Twisted Captive Pin is made from 316L stainless steel and features a captive pin that remains attached when opened. Its locking system prevents loss from vibration, supports single-handed operation, and is ideal for 90° twist applications like mounting blocks on rails, though it is not designed for lifting.
- Description
- Ask a Question
-

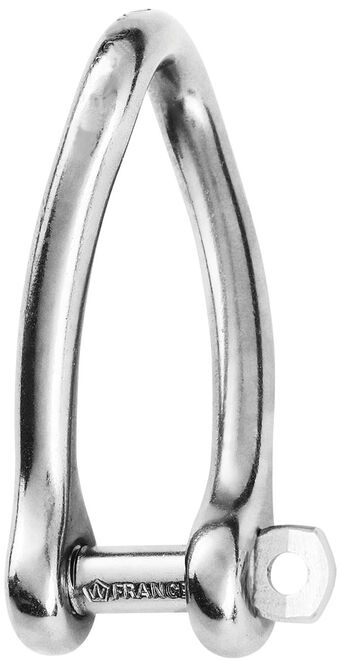

Wichard 1422 - D-Clasp Twisted Captive Pin SS 5 mm
Made from 316L stainless steel, this twisted shackle integrates a captive pin that stays connected to the body when opened. The locking system ensures secure positioning, avoiding any loss due to vibration. Offering impressive load capacity and single-handed operation, this model is not intended for lifting. Its 90° twist design makes it ideal for setups where alignment differs, such as mounting blocks on rails or similar fixed connections.
- Material: 316 stainless steel grade
- Working load (kg): 480
- Breaking load (kg): 1500
- Weight (g): 23

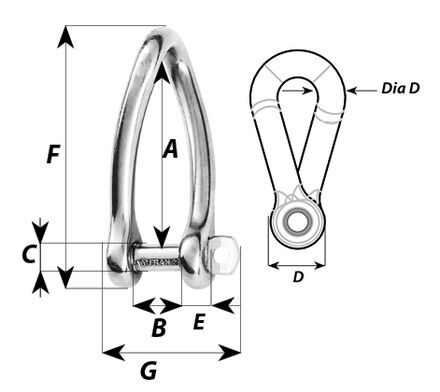

- A (mm): 37
- B (mm): 10
- C (mm): 6
- D (mm): 11
- D diameter (mm): 5
- E (mm): 5
- F (mm): 50
- G (mm): 27
- Item number: WR1422
-
