The Wichard 1423 D-Clasp Twisted Captive Pin, crafted from 316L stainless steel, offers a secure captive pin that resists vibration and allows easy single-handed use. It is designed for 90° angle connections, commonly linking unarticulated parts such as blocks on rails, and provides strong working and breaking loads.
- Description
- Ask a Question
-

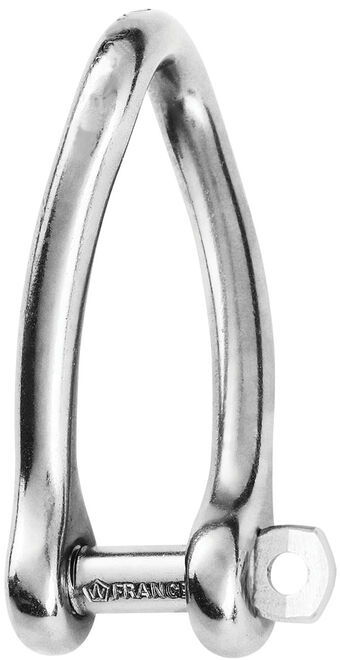

Wichard 1423 - D-Clasp Twisted Captive Pin SS 6 mm
Crafted from grade 316L stainless steel, this twisted D-shackle features a captive pin that cannot be lost and locks securely into position. Resistant to vibration and easy to handle with one hand, it provides strong working and breaking loads. Perfect for 90° angle setups, it is frequently used to link unarticulated parts such as blocks on rails or purchase systems.
- Material: 316 stainless steel grade
- Working load (kg): 600
- Breaking load (kg): 2100
- Weight (g): 39

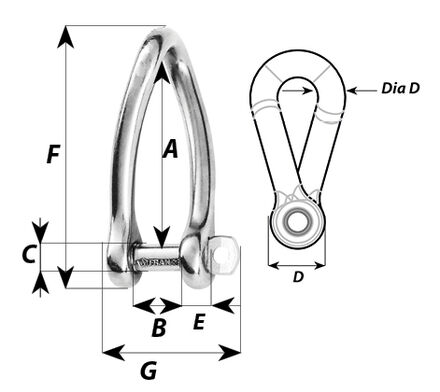

- A (mm): 44
- B (mm): 12
- C (mm): 7
- D (mm): 14
- D diameter (mm): 6
- E (mm): 6
- F (mm): 60
- G (mm): 31
- Item number: WR1423
-
