ID
1304410
$ 53.98
1-2 weeks delivery time
-
+
The Wichard 1415 is a 10 mm long D-shackle forged in 316L stainless steel, including a captive pin that locks securely to prevent vibration loosening, designed for single-handed operation, high performance, and CE-certified industrial lifting or extended-length applications.
- Description
- Ask a Question
-

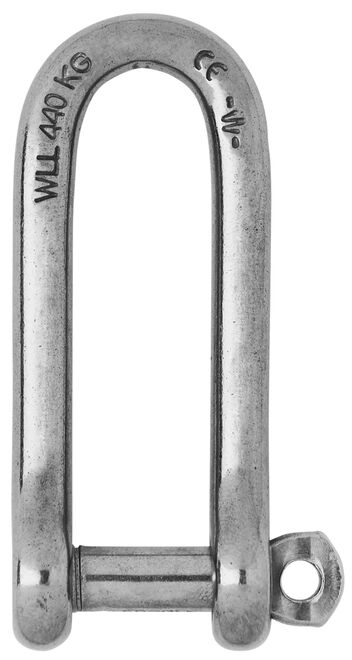

Wichard 1415 - Captive Pin Long D-Shackle 10 mm
This long D-shackle, forged in grade 316L stainless steel, includes a captive pin that remains attached to the shackle body. The locking mechanism ensures stability even under vibration, while its high performance offers excellent working and breaking loads. Designed for one-handed use and certified with CE marking, it suits industrial lifting and applications needing extra shackle length or solid attachments such as blocks and heads.
- Material: 316 stainless steel grade
- Working load (kg): 1560
- WLL (kg): 1040
- Breaking load (kg): 5200
- Weight (g): 176

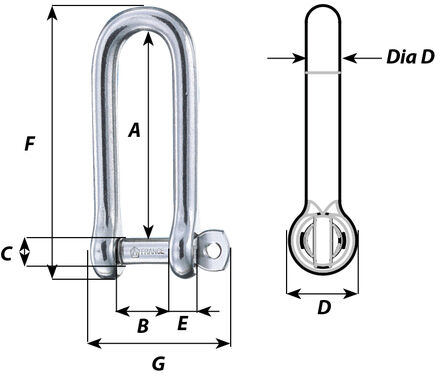

- A (mm): 78
- B (mm): 20
- C (mm): 11
- D (mm): 21
- D diameter (mm): 10
- E (mm): 10
- F (mm): 103
- G (mm): 54
- Item number: WR1415
-
