ID
1304406
$ 13.27
1-2 weeks delivery time
-
+
The Wichard 1411 is a 4 mm long D-shackle with a captive pin forged in 316L stainless steel, designed for extra length, secure locking, vibration resistance, one-handed use, and CE-certified strength for industrial environments.
- Description
- Ask a Question
-

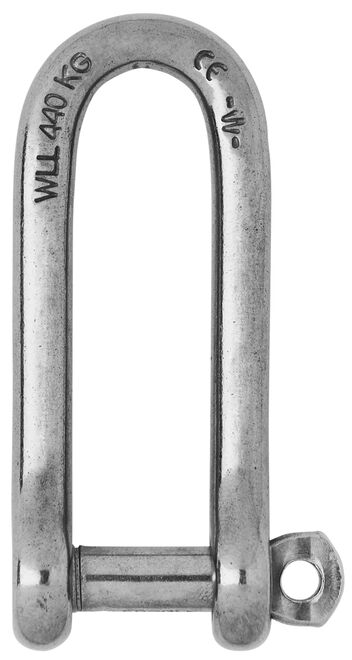

Wichard 1411 - Captive Pin Long D-Shackle 4 mm
The Wichard 1411 captive pin long D-shackle provides a reliable connection for applications requiring extra length. Forged from 316L stainless steel, it features a captive pin that remains attached and locks into place for secure operation. Designed to resist vibration loosening, it offers strong performance, one-handed use, and CE marking approval for industrial environments.
- Forged 316L stainless steel construction
- Captive pin stays attached to body
- Locking system keeps pin secure
- Vibration-resistant design
- Excellent load performance
- Single-handed operation for user safety
- WLL for industrial use (lifting, etc.)
- CE marking certified
- Applications: shackles requiring additional length, block and head attachment
- Materials: 316 stainless steel grade
- Working load (kg): 320
- WLL (kg): 200
- Breaking load (kg): 1000
- Weight (g): 12

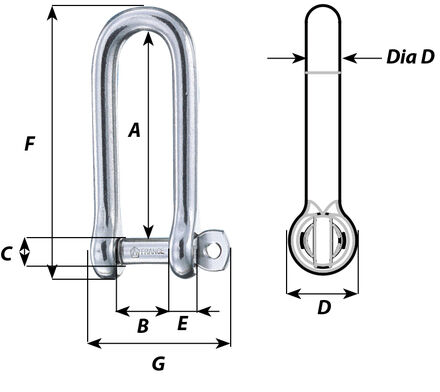

- A (mm): 31
- B (mm): 8
- C (mm): 5
- D (mm): 9
- D diameter (mm): 4
- E (mm): 4
- F (mm): 41
- G (mm): 22
- Item number: WR1411
-
