The Wichard 1404 is an 8 mm captive pin D-shackle made from marine-grade 316L stainless steel, keeping the pin attached when opened, with strong working and breaking loads, vibration resistance, and CE approval for industrial and lifting use.
- Description
- Ask a Question
-

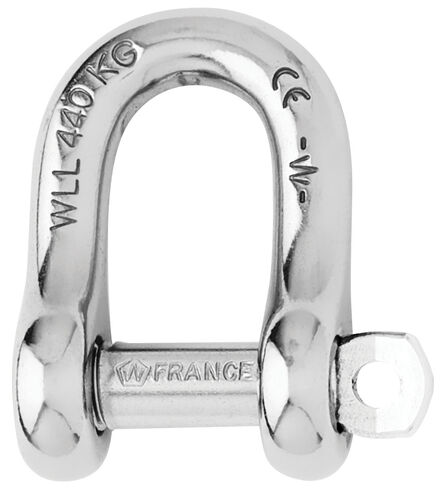

Wichard 1404 - Captive Pin D-Shackle 8 mm
Forged from marine-grade 316L stainless steel, this 8 mm captive pin D-shackle ensures safety and reliability. The pin remains attached when opened, reducing loss risk and simplifying use. Featuring excellent load capacities, vibration resistance, and CE marking, it’s perfect for both standard and lifting applications.
- Material: 316 stainless steel grade
- Working load (kg): 1080
- WLL (kg): 720
- Breaking load (kg): 3600
- Weight (g): 61

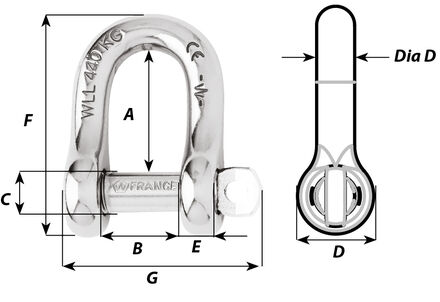

- A (mm): 26
- B (mm): 16
- C (mm): 9
- D (mm): 18
- D diameter (mm): 8
- E (mm): 8
- F (mm): 47
- G (mm): 42
- Item number: WR1404
-
