ID
1304407
$ 15.59
1-2 weeks delivery time
-
+
The Wichard 1412 is a 5 mm long D-shackle in 316L stainless steel, with a captive pin that remains attached and locks securely, preventing vibration loosening, allowing single-handed operation, and providing CE-marked reliability for industrial lifting.
- Description
- Ask a Question
-

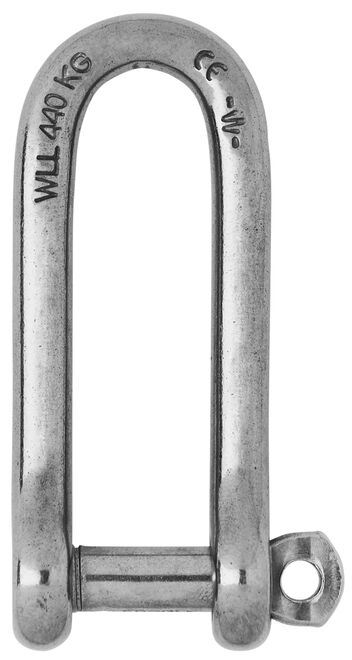

Wichard 1412 - Captive Pin Long D-Shackle 5 mm
The Wichard 1412 captive pin long D-shackle is a strong and precise fitting designed for applications that need extra length. Made from forged 316L stainless steel, it maintains the pin connection even when open and secures it into locking positions to avoid vibration-induced loosening. It ensures reliable one-handed operation and is CE marked for industrial lifting use.
- 316L stainless steel forged body
- Pin remains connected to shackle body
- Pin locks securely into indentations
- Prevents loosening under vibration
- High working and breaking loads
- Operated with one hand for safety
- WLL for industrial lifting and applications
- CE marking certified
- Applications: long shackle connections, block and head attachments
- Materials: 316 stainless steel grade
- Working load (kg): 480
- WLL (kg): 300
- Breaking load (kg): 1500
- Weight (g): 24

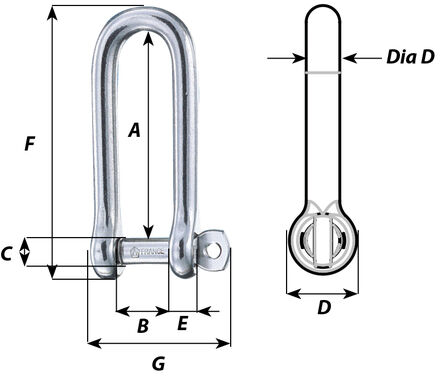

- A (mm): 39
- B (mm): 10
- C (mm): 6
- D (mm): 11
- D diameter (mm): 5
- E (mm): 5
- F (mm): 52
- G (mm): 27
- Item number: WR1412
-
