The Wichard 1414 is an 8 mm long D-shackle in 316L stainless steel, with a captive pin that remains attached and locks securely, designed for one-handed use, high working and breaking loads, and CE marking for industrial lifting and applications requiring extra shackle length.
- Description
- Ask a Question
-

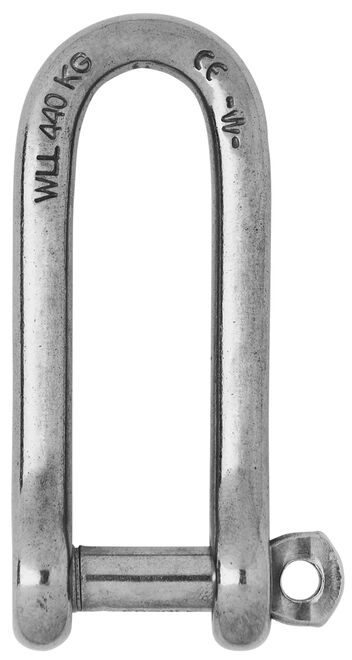

Wichard 1414 - Captive Pin Long D-Shackle 8 mm
Forged in 316L stainless steel, this long D-shackle features a captive pin that remains attached to the body even when opened. The locking system secures the pin in position to prevent loss due to vibration. Designed for safety, it allows single-handed operation and provides excellent working and breaking loads. Intended for industrial lifting applications, it carries CE marking and is ideal for setups requiring additional shackle length or secure attachments such as blocks and heads.
- Material: 316 stainless steel grade
- Working load (kg): 1080
- WLL (kg): 720
- Breaking load (kg): 3600
- Weight (g): 92

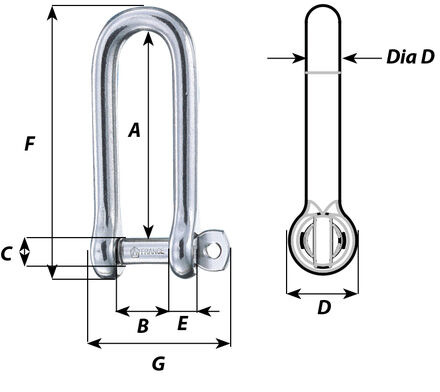

- A (mm): 62
- B (mm): 16
- C (mm): 9
- D (mm): 17
- D diameter (mm): 8
- E (mm): 8
- F (mm): 82
- G (mm): 43
- Item number: WR1414
-
