ID
1304347
$ 346.37
1-2 weeks delivery time
-
+
The Wichard 11248 bow shackle, made from HR 17.4 PH stainless steel, provides high strength and versatility for industrial applications, accommodating several lines or cables safely with a working load of 8800 kg and a breaking load of 28000 kg.
- Description
- Ask a Question
-

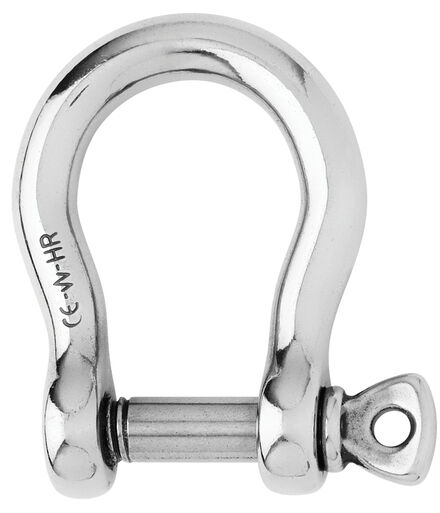

Wichard 11248 - Bow Shackle HR Stainless Steel 20 mm
Engineered in HR stainless steel grade 17,4 PH, this bow shackle combines impressive strength with versatility, allowing several lines or cables to be attached safely in high-load scenarios.
- Materials: HR 17.4 PH stainless steel grade
- Working load: 8800 kg
- WLL: 5600 kg (only for industrial applications)
- Breaking load: 28000 kg
- Weight: 1.011 kg

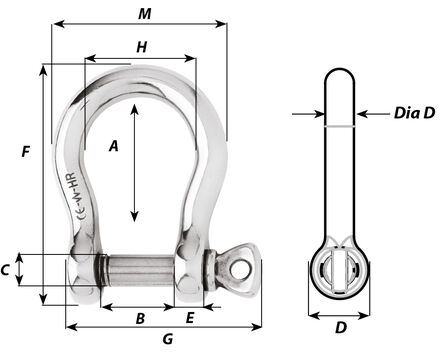

- A: 80 mm
- B: 40 mm
- C: 20 mm
- D: 40 mm
- D diameter: 20 mm
- E: 18 mm
- H: 60 mm
- M: 100 mm
- Applications: High load requirements, ample space for multiple attachments. Not for mooring applications.
- CE marking
- Item number: WR11248
-
