The Wichard 11249 bow shackle is a 24 mm high-resistance stainless steel component engineered for maximum working and breaking loads in industrial lifting tasks, supporting multiple line attachments with a working load of 12800 kg and breaking load of 35000 kg.
- Description
- Ask a Question
-

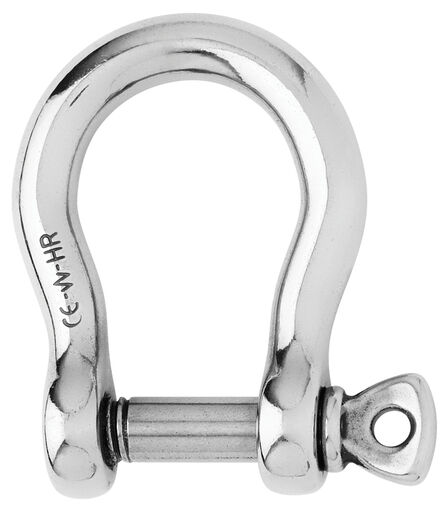

Wichard 11249 - Bow Shackle HR Stainless Steel 24 mm
This 24 mm bow shackle in HR stainless steel grade 17,4 PH provides maximum working and breaking loads, designed for industrial lifting tasks and situations requiring multiple line attachments.
- Materials: HR 17.4 PH stainless steel grade
- Working load: 12800 kg
- WLL: 7000 kg (only for industrial applications)
- Breaking load: 35000 kg
- Weight: 1.706 kg

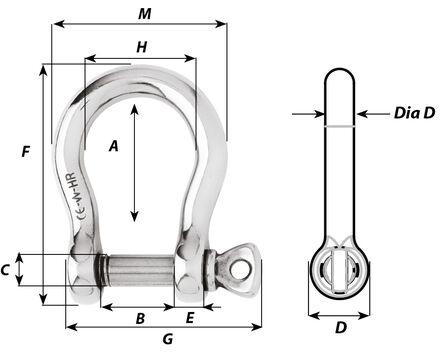

- A: 108 mm
- B: 48 mm
- C: 24 mm
- D: 47 mm
- D diameter: 24 mm
- E: 20 mm
- H: 70 mm
- M: 118 mm
- Applications: High load requirements, ample space for multiple attachments. Not for mooring applications.
- CE marking
- Item number: WR11249
-
