ID
1304345
$ 107.67
1-2 weeks delivery time
-
+
The Wichard 11246 12 mm Bow Shackle forged in HR 17-4 PH stainless steel manages high industrial loads while accommodating multiple attachments. It supports a working load of 3600 kg, WLL of 2000 kg, and breaking load of 10000 kg, weighs 224 g, and is CE marked, designed for demanding lifting applications excluding mooring.
- Description
- Ask a Question
-

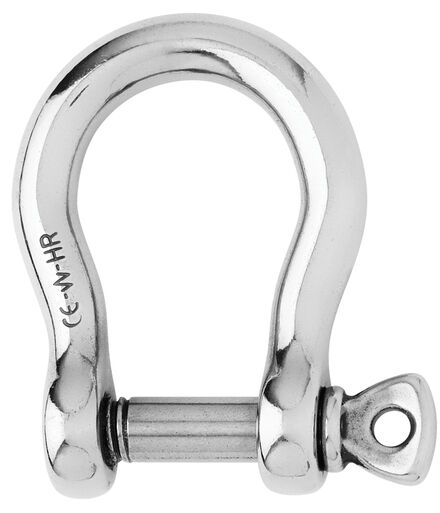

Wichard 11246 - Bow Shackle HR Stainless Steel 12 mm
Forged from HR stainless steel grade 17-4 PH, this 12 mm bow shackle handles high industrial loads and allows for multiple line attachments. CE marked and suitable for demanding applications, excluding mooring.
- Materials: HR 17.4 PH stainless steel grade
- Working load (kg): 3600
- WLL (kg): 2000
- Breaking load (kg): 10000
- Weight (g): 224

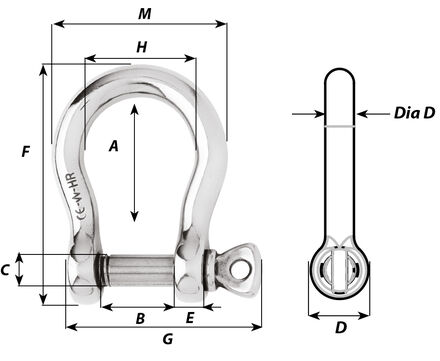

- A (mm): 55
- B (mm): 24
- C (mm): 12
- D (mm): 24
- D diameter (mm): 12
- E (mm): 10
- F (mm): 86
- G (mm): 68
- H (mm): 38
- M (mm): 63
- Item number: WR11246
-
