ID
1304346
$ 207.82
1-2 weeks delivery time
-
+
The Wichard 11247 bow shackle is forged from HR 17.4 PH stainless steel and designed for heavy-duty industrial use, offering space for multiple lines or cables and a working load of 6800 kg with a breaking load of 19000 kg.
- Description
- Ask a Question
-

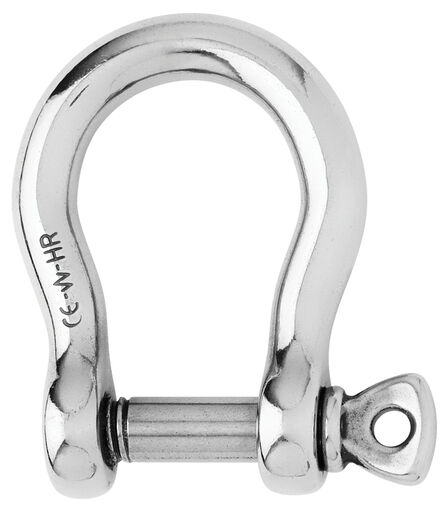

Wichard 11247 - Bow Shackle HR Stainless Steel 16 mm
This forged bow shackle in HR stainless steel grade 17,4 PH offers exceptional durability for demanding industrial tasks. Its design allows multiple lines or cables to be attached while providing excellent resistance and strength.
- Materials: HR 17.4 PH stainless steel grade
- Working load: 6800 kg
- WLL: 3800 kg (only for industrial applications)
- Breaking load: 19000 kg
- Weight: 526 g

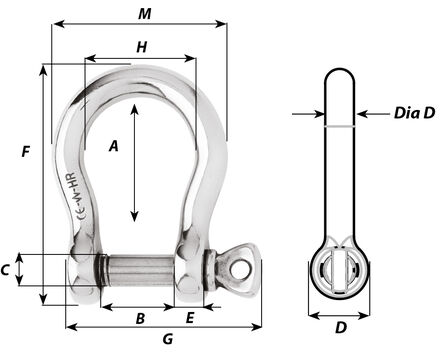

- A: 70 mm
- B: 32 mm
- C: 16 mm
- D: 32 mm
- D diameter: 16 mm
- E: 15 mm
- H: 50 mm
- M: 83 mm
- Applications: High load requirements, ample space for multiple attachments. Not for mooring applications.
- CE marking
- Item number: WR11247
-
