ID
1355877
$ 225.14
1-2 weeks delivery time
Item:
- 3/8
- 7/16
- 5/8
The STA-LOK B31 Bronze Fork & Fork turnbuckles are forged from high strength bronze alloy with a polished chromium finish and supplied with fully machined Threaded Fork Ends (B16/B17) at both ends. Available with UNF threads from 1/4" to 3/4", they provide precise adjustment with fully open lengths from 225.0 mm to 547.0 mm and fully closed lengths from 149.0 mm to 382.0 mm. Fork widths range from 6.4 mm to 19.1 mm, with fork pins from 6.2 mm to 18.5 mm.
- Description
- Ask a Question
-

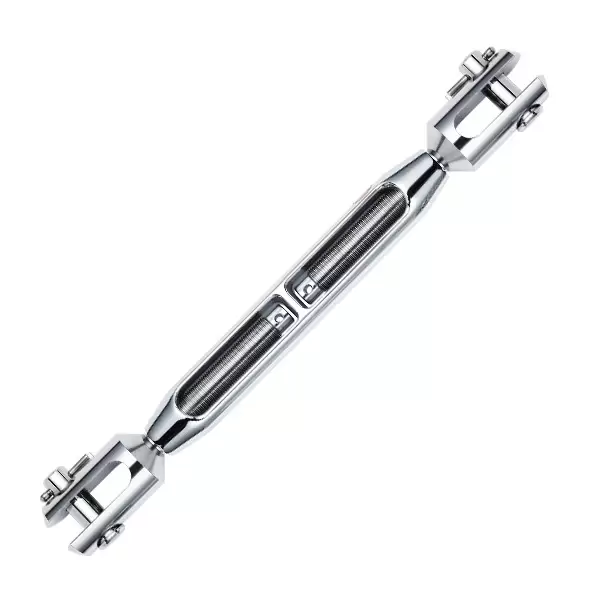

STA-LOK B31 Bronze Fork & Fork Turnbuckles – Chromium-Plated Bronze Turnbuckles with Double Threaded Fork Ends
The STA-LOK B31 Bronze Fork & Fork turnbuckles are designed for rigging systems requiring fork connections at both ends. Each assembly is supplied with fully machined Threaded Fork Ends (B16/B17), ensuring secure attachment and controlled adjustment.
The turnbuckle body is forged from high strength bronze alloy and finished with a high quality polished chromium finish, providing durability and resistance to corrosion in marine and structural environments.
Key Features
- Bronze turnbuckle with fork-to-fork configuration
- Supplied with fully machined Threaded Fork Ends (B16/B17) at both ends
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Designed for secure rigging connections
- Stronger than the wire rope
Applications
Suitable for marine and architectural rigging systems where fork connections are required at both ends of the turnbuckle.
Technical Specifications
SKU Thread (UNF) Fully Open (MM) Fully Closed (MM) Fully Open (INCH) Fully Closed (INCH) Fork Width (MM) Fork Width (INCH) Fork Pin (MM) Fork Pin (INCH) B31-14 1/4" 225.0 149.0 8.858 5.866 6.4 0.252 6.2 1/4" B31-516 5/16" 260.0 177.0 10.236 6.969 7.9 0.311 7.7 5/16" B31-38 3/8" 293.0 201.0 11.535 7.913 9.5 0.374 9.3 3/8" B31-716 7/16" 333.0 233.0 13.110 9.173 11.1 0.437 10.9 7/16" B31-12 1/2" 368.0 267.0 14.488 10.512 12.7 0.500 12.6 1/2" B31-58 5/8" 427.0 301.0 16.811 11.850 15.9 0.625 15.6 5/8" B31-34 3/4" 547.0 382.0 21.535 15.039 19.1 0.752 18.5 3/4"
Construction and Design
- Bronze forged turnbuckle body
- Chromium polished surface finish
- Double threaded fork end configuration
- Compatible with B16 and B17 fork end systems
-
