The STA-LOK C770 threaded eye end fittings are manufactured from high specification 316 stainless steel and designed for use with Sta-Lok turnbuckles, featuring left-hand UNF threads from 1/4" to 1 3/8". Dimensions include eye width (C) from 8.4 mm to 42.9 mm, pin diameter (D) from 6.0 mm to 33.3 mm, and overall length (E) from 47.0 mm to 220.0 mm. Supplied with a split pin for secure installation, with weights ranging from 0.014 kg to 2.930 kg.
- Description
- Ask a Question
-

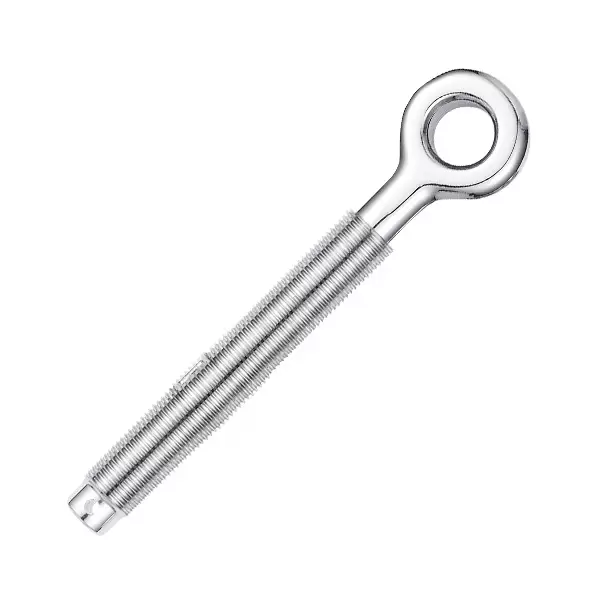

STA-LOK C770 Stainless Steel Threaded Eye End Fittings – 316 Stainless Steel, Left-Hand UNF Thread, with Split Pin
The STA-LOK C770 Threaded Eye End Fittings are precision-engineered components designed for use with Sta-Lok turnbuckles. Manufactured from high specification 316 stainless steel, these fittings provide durability and corrosion resistance in marine and structural applications.
Each fitting features a left-hand UNF thread and is supplied with a split pin to ensure secure assembly. Selected larger sizes are machined rather than forged, providing additional strength and precision.
Key Features
- Threaded eye end fittings for Sta-Lok turnbuckles
- Manufactured from high specification 316 stainless steel
- Left-hand UNF thread configuration
- Supplied with split pin for secure installation
- Precision-machined construction on selected sizes
Technical Specifications
SKU Thread (UNF) C (MM) D (MM) E (MM) H (MM) Weight (KG) C770-14 1/4" 8.4 6.0 47.0 6.4 0.014 C770-516 5/16" 9.5 6.5 57.0 8.0 0.020 C770-38 3/8" 11.0 7.8 68.0 9.5 0.040 C770-716 7/16" 12.0 9.3 75.0 11.1 0.080 C770-12 1/2" 13.5 11.5 90.0 12.7 0.120 C770-58 5/8" 18.3 13.6 100.0 16.0 0.240 C770-34 3/4" 22.5 18.0 128.0 19.5 0.520 C770-78 7/8" 25.5 21.0 140.0 22.5 0.800 C770-100 1" 31.9 24.4 156.0 25.4 1.180 C770-118 1 1/8" 36.5 27.5 180.0 28.6 1.720 C770-114 1 1/4" 38.1 30.5 215.0 31.8 2.480 C770-138 1 3/8" 42.9 33.3 220.0 35.0 2.930
Construction Details
- 316 stainless steel construction for corrosion resistance
- Left-hand threaded connection
- Eye configuration for secure attachment points
- Split pin included for locking and safety
-
