The STA-LOK B20 Bronze Toggle & Blank range includes turnbuckles with UNF threads from 1/4" to 3/4", forged from high strength bronze alloy and finished with high quality polished chromium. Each unit is supplied with a Threaded Strap Toggle (B18) at one end, while the toggle design provides full articulation in two planes. Adjustment ranges from 76.0 mm to 168.0 mm, with toggle pin sizes from 6.4 mm to 18.5 mm depending on thread size.
- Description
- Ask a Question
-

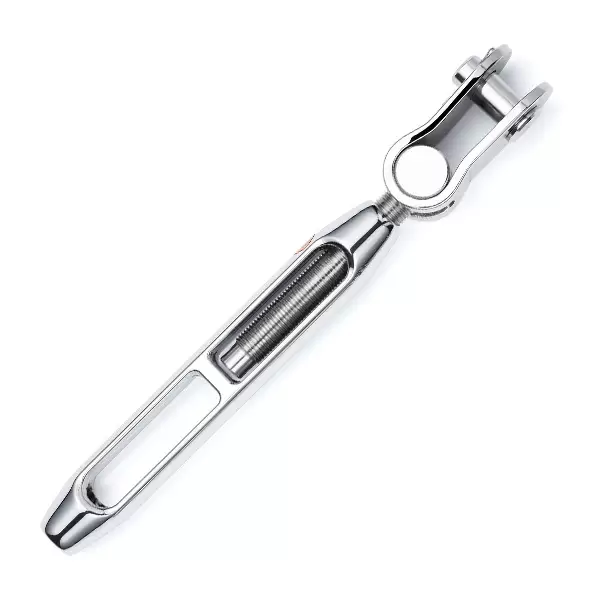

STA-LOK B20 Bronze Toggle & Blank Turnbuckles – Chromium-Plated Bronze Turnbuckles with Threaded Strap Toggle End
The STA-LOK B20 Bronze Toggle & Blank range is designed for rigging systems requiring a bronze turnbuckle body with full articulation in two planes. These turnbuckles combine an elegant appearance with a functional toggle configuration for reliable alignment under load.
Each unit is forged from high strength bronze alloy and finished with a high quality polished chromium finish. One end is supplied with a Threaded Strap Toggle (B18), while the toggle action allows flexible movement to help accommodate changing alignment in service.
Key Features
- Bronze turnbuckle with toggle and blank configuration
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Supplied with a Threaded Strap Toggle (B18) at one end
- Toggle action gives full articulation in two planes
- Suitable for rigging and tensioning systems
Applications
Suitable for marine and architectural rigging systems where a turnbuckle with toggle articulation and a polished bronze body is required.
Technical Specifications
SKU Thread (UNF) Toggle Width (MM) Toggle Width (INCH) Toggle Pin (MM) Toggle Pin (INCH) Adjustment (MM) Adjustment (INCH) B20-14 1/4" 6.4 0.252 6.4 1/4" 76.0 2.992 B20-516 5/16" 8.4 0.331 7.9 5/16" 83.0 3.268 B20-38 3/8" 9.9 0.390 9.5 3/8" 92.0 3.622 B20-716 7/16" 11.5 0.453 11.1 7/16" 100.0 3.937 B20-12 1/2" 13.1 0.516 12.7 1/2" 104.0 4.094 B20-58 5/8" 16.3 0.642 16.0 5/8" 126.0 4.961 B20-34 3/4" 19.1 0.752 18.5 3/4" 168.0 6.615
Construction and Installation
- Bronze forged body with polished chromium finish
- Toggle end provides articulation in two planes
- Threaded Strap Toggle end corresponds to product range B18
- For additional dimensions on the Threaded Strap Toggle end, refer to product range B18
-
