The STA-LOK B28-10 is a bronze turnbuckle designed for 10 mm wire, featuring a fully machined Threaded Fork End (B16) and a Swage Stud (051). Forged from high strength bronze alloy with a polished chromium finish, it provides secure tensioning and strength exceeding the wire rope. The unit has a 5/8" UNF thread, fully open length of 407.0 mm, fully closed length of 283.0 mm, fork width of 15.9 mm, and fork pin of 15.6 mm.
- Description
- Ask a Question
-

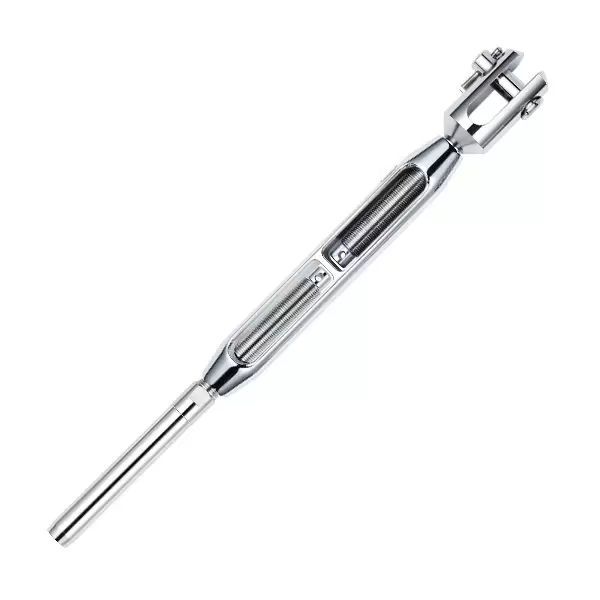

STA-LOK B28-10 – Bronze Turnbuckle Fork & Swage 10 mm Wire, 5/8" UNF Thread
The STA-LOK B28-10 is a bronze turnbuckle assembly designed for 10 mm wire rope, featuring a combination of a Threaded Fork End (B16) and a Swage Stud (051). This configuration provides a secure and adjustable connection for rigging systems.
The body is forged from high strength bronze alloy and finished with a high quality polished chromium finish. The construction is designed to deliver strength exceeding that of the wire rope, ensuring reliable performance under load.
Key Features
- Bronze turnbuckle with fork and swage configuration
- Designed for 10 mm wire rope
- Threaded Fork End (B16) at one end
- Swage Stud (051) at the other end
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Designed to be stronger than the wire rope
Technical Specifications

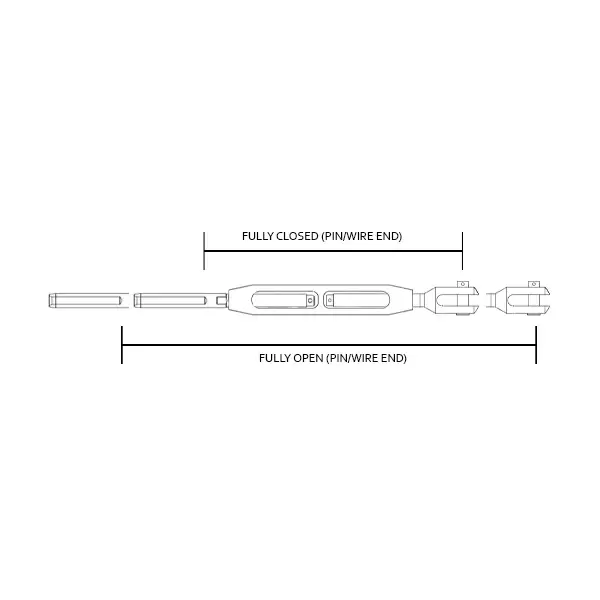

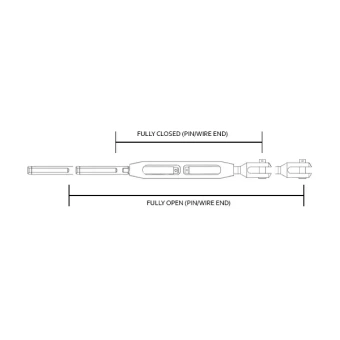

Parameter Value Wire Size (Metric) 10 mm Thread (UNF) 5/8" Fully Open Length 407.0 mm (16.024") Fully Closed Length 283.0 mm (11.142") Fork Width 15.9 mm (0.625") Fork Pin 15.6 mm (5/8") Item Number STB28-10-5/8
Construction and Design
- Bronze forged turnbuckle body
- Chromium polished surface finish
- Fully machined threaded fork end
- Swage stud connection for wire termination
-
