ID
1355881
$ 225.14
1-2 weeks delivery time
Diameter, mm:
- 7
- 8
- 10
- 12
Item:
- 1/2
- 5/8
- 3/4
The STA-LOK S24 Supajust Toggle & Swage turnbuckles are manufactured from high specification stainless steel and feature a threaded toggle (B18) and swage stud (051) for secure rigging connections. Designed for wire sizes from 5 mm to 12 mm with UNF threads from 3/8" to 3/4", they provide adjustment ranges from 302.0 mm to 517.0 mm (fully open) and 228.0 mm to 393.0 mm (fully closed), with toggle widths from 9.9 mm to 19.1 mm.
- Description
- Ask a Question
-

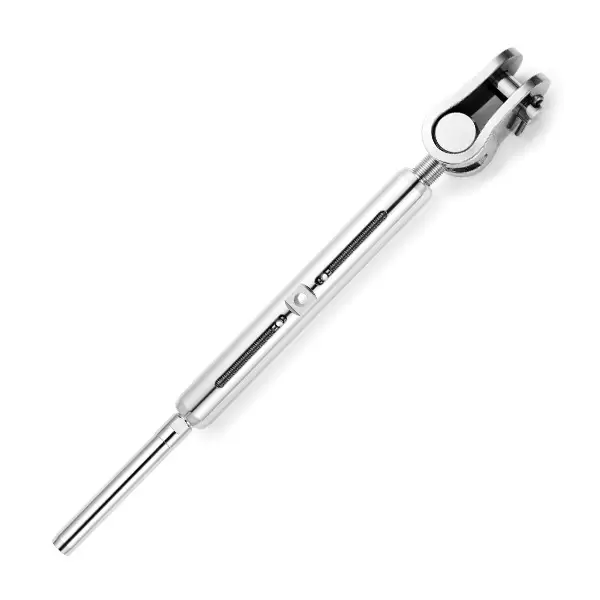

STA-LOK S24 Supajust Toggle & Swage Turnbuckles – Stainless Steel Open Body Turnbuckles with Threaded Toggle and Swage Stud
The STA-LOK S24 Supajust Toggle & Swage turnbuckles are designed for precise adjustment and secure rigging connections. The assembly features a threaded toggle (B18) at one end and a swage stud (051) at the other, making it suitable for connection to chain plates and fixing points.
Manufactured from high specification stainless steel, the open body design incorporates threaded bronze inserts to ensure smooth adjustment without seizing or galling. The toggle mechanism allows full articulation in two planes, supporting alignment under load.
Key Features
- Open body stainless steel turnbuckle design
- Threaded Toggle (B18) at one end
- Swage Stud (051) at the other end
- Threaded bronze inserts for smooth adjustment
- Designed for articulation in two planes
- Suitable for chain plates and fixing points
Applications
Suitable for marine rigging systems requiring adjustable connections between wire and structural fixing points.
Technical Specifications
SKU Wire Size (MM) Thread (UNF) Fully Open (MM) Fully Closed (MM) Toggle Width (MM) Toggle Pin (MM) S24-07 7 1/2" 356.0 258.0 13.1 12.7 S24-08 8 1/2" 356.0 258.0 13.1 12.7 S24-588 8 5/8" 413.0 305.0 16.3 16.0 S24-10 10 5/8" 421.0 313.0 16.3 16.0 S24-12 12 3/4" 517.0 393.0 19.1 18.5
Construction and Design
- High specification stainless steel construction
- Open body turnbuckle configuration
- Bronze threaded inserts to prevent seizing
- Toggle connection for flexible alignment
-
