The STA-LOK B19 Bronze Body Turnbuckle is a forged bronze turnbuckle body with an aerodynamic design that combines strength, durability, and refined appearance. Manufactured from high strength bronze alloy and finished in highly polished chromium, it is designed for marine rigging applications requiring reliable tension adjustment. The range is available with UNF threads from 1/4" to 3/4".
- Description
- Ask a Question
-

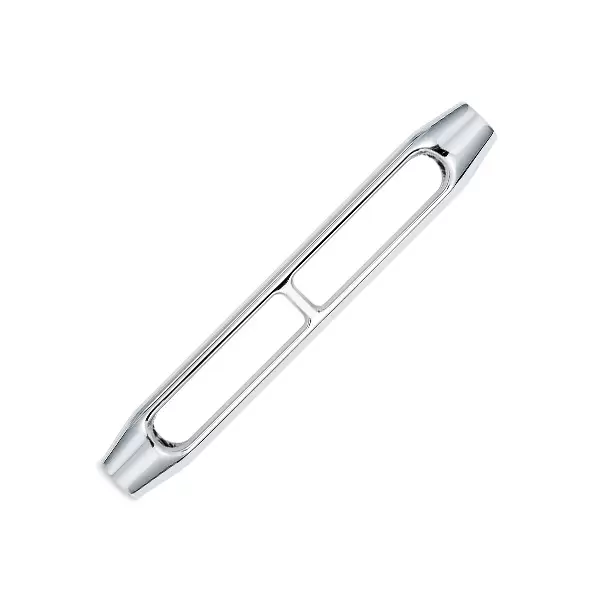

STA-LOK B19 Bronze Body Turnbuckle – Forged Bronze Turnbuckle Body with Polished Chromium Finish
The STA-LOK B19 Bronze Body Turnbuckle range consists of forged bronze turnbuckle bodies designed for marine rigging and tensioning applications. The aerodynamic body shape combines structural strength with a refined appearance suitable for both traditional and modern rigging systems.
Manufactured from high strength bronze alloy and finished in highly polished chromium, these turnbuckles provide durability, corrosion resistance, and reliable adjustment in demanding marine environments.
The aerodynamic design creates one of the strongest and most elegant bronze turnbuckles available for marine rigging systems.
Key Features
- Bronze body turnbuckle for marine rigging
- Aerodynamic body design
- Forged from high strength bronze alloy
- Finished in highly polished chromium
- Precise adjustment for wire rigging systems
- Available with UNF threads from 1/4" to 3/4"
Available Variants
Item Number Thread (UNF) A (mm) A (inch) Adjustment (mm) Adjustment (inch) Weight (kg) Weight (lb) STB19-1/4 1/4" 114.0 4.488 76.0 2.992 0.060 0.132 STB19-5/16 5/16" 123.0 4.843 83.0 3.268 0.080 0.176 STB19-3/8 3/8" 133.0 5.236 92.0 3.622 0.120 0.265 STB19-7/16 7/16" 152.0 5.984 100.0 3.937 0.160 0.353 STB19-1/2 1/2" 163.0 6.417 104.0 4.094 0.220 0.485 STB19-5/8 5/8" 195.0 7.677 126.0 4.961 0.400 0.882 STB19-3/4 3/4" 255.0 10.039 168.0 6.615 0.800 1.764
Technical Information
- Product type: Bronze body turnbuckle
- Material: High strength bronze alloy
- Finish: Highly polished chromium
- Application: Marine rigging and tension adjustment
- Design: Aerodynamic forged bronze body
-
