The STA-LOK B20 ET-34 is a bronze turnbuckle with 3/4" UNF thread, forged from high strength bronze alloy and finished with polished chromium. It is supplied with a stainless steel Threaded Eye Toggle (ET18) at one end and features toggle articulation for movement in two planes. The unit has a breaking strength of 14,061 kg, toggle width of 20.0 mm, toggle pin of 18.5 mm, and adjustment range of 168.0 mm.
- Description
- Ask a Question
-

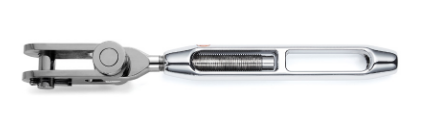

STA-LOK B20 ET-34 – Bronze Turnbuckle with U-Toggle & Blank 3/4" UNF, with Stainless Steel Threaded Eye Toggle ET18
The STA-LOK B20 ET-34 is a bronze turnbuckle designed for rigging applications requiring a U-toggle (eye toggle) and blank configuration. It is supplied with a stainless steel Threaded Eye Toggle (ET18) at one end, providing a secure and reliable connection.
The body is forged from high strength bronze alloy and finished with a high quality polished chromium finish. The toggle design allows full articulation in two planes, supporting alignment flexibility under load.
Key Features
- Bronze turnbuckle with U-toggle (eye toggle) and blank end
- Supplied with stainless steel Threaded Eye Toggle (ET18)
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Toggle action allows articulation in two planes
- Designed for secure rigging connections
Technical Specifications
Parameter Value Thread (UNF) 3/4" Breaking Strength 14061 kg Toggle Width 20.0 mm (0.787") Toggle Pin 18.5 mm (3/4") Adjustment 168.0 mm (6.615") Item Number STB20ET-3/4
Construction and Design
- Bronze forged turnbuckle body
- Chromium polished surface finish
- Stainless steel threaded eye toggle (ET18)
- Toggle articulation for flexible alignment
-
