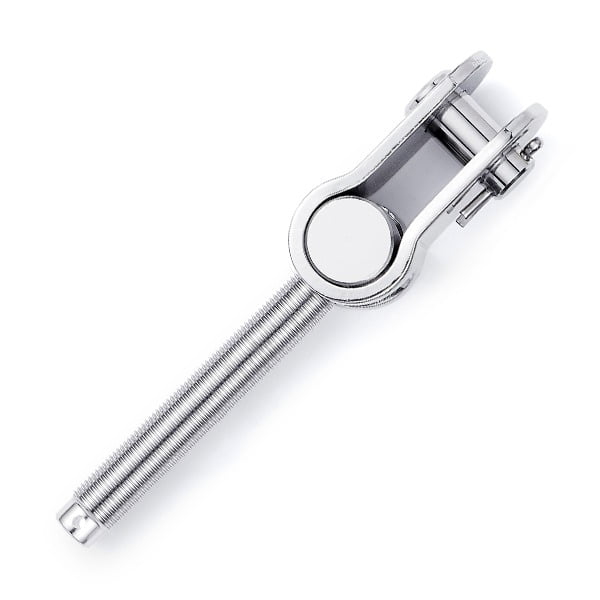

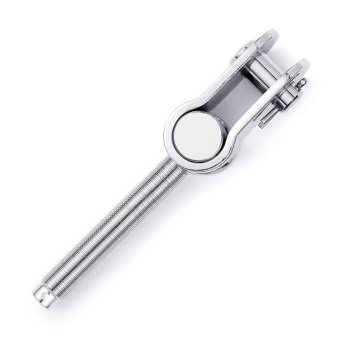

STA-LOK B15/B18 Threaded Strap Toggle Ends 316 Stainless Steel

ID 1355658

$ 41.91

1-2 weeks delivery time

Type:

Left-Hand
Right-Hand

Item:

5/16
1/4
3/8
7/16
1/2
5/8
3/4

The STA-LOK B15/B18 Threaded Strap Toggle Ends are precision stainless steel end fittings designed for use with all Sta-Lok turnbuckles. Manufactured from high specification 316 stainless steel, they provide full articulation in two planes for improved alignment and load handling. The range includes both right-hand (B15) and left-hand (B18) thread versions and is supplied with a split pin.

Description
Ask a Question

STA-LOK B15/B18 Threaded Strap Toggle Ends – 316 Stainless Steel Toggle End Fittings for Sta-Lok Turnbuckles

The STA-LOK B15/B18 Threaded Strap Toggle Ends are stainless steel end fittings designed for secure and flexible connection in turnbuckle assemblies. These fittings are suitable for all Sta-Lok turnbuckles and are available in both right-hand (B15) and left-hand (B18) thread versions.

Manufactured from high specification 316 stainless steel, they provide excellent corrosion resistance and long-term durability in marine and rigging applications. Their design allows full articulation in two planes, helping maintain correct alignment under load.

Each fitting is supplied with a split pin for secure installation.

Key Features

Threaded strap toggle end for Sta-Lok turnbuckles
Available in right-hand and left-hand thread versions
Full articulation in two planes
Manufactured from high specification 316 stainless steel
Suitable for all Sta-Lok turnbuckles
Supplied with split pin

Available Variants

Item Number	Thread (UNF)	Thread Type	B (mm)	D (mm)	E (mm)	P (mm)	Weight (kg)
STB18-1/4	1/4"	Left Hand	14.4	6.4	57.0	6.4	0.040
STB15-1/4	1/4"	Right Hand	14.4	6.4	57.0	6.4	0.040
STB18-5/16	5/16"	Left Hand	19.0	8.4	60.0	7.9	0.060
STB15-5/16	5/16"	Right Hand	19.0	8.4	60.0	7.9	0.060
STB18-3/8	3/8"	Left Hand	20.0	9.9	70.0	9.5	0.100
STB15-3/8	3/8"	Right Hand	20.0	9.9	70.0	9.5	0.100
STB18-7/16	7/16"	Left Hand	25.0	11.5	75.0	11.1	0.160
STB15-7/16	7/16"	Right Hand	25.0	11.5	75.0	11.1	0.160
STB18-1/2	1/2"	Left Hand	28.0	13.1	81.0	12.7	0.260
STB15-1/2	1/2"	Right Hand	28.0	13.1	81.0	12.7	0.260
STB18-5/8	5/8"	Left Hand	33.0	16.3	89.0	16.0	0.480
STB15-5/8	5/8"	Right Hand	33.0	16.3	89.0	16.0	0.480
STB18-3/4	3/4"	Left Hand	34.0	19.1	125.0	18.5	0.700
STB15-3/4	3/4"	Right Hand	34.0	19.1	125.0	18.5	0.700

Technical Information

Product type: Threaded strap toggle end
Material: 316 stainless steel
Application: Sta-Lok turnbuckle assemblies
Thread options: Right-hand and left-hand UNF threads
Movement: Full articulation in two planes
Included: Split pin
