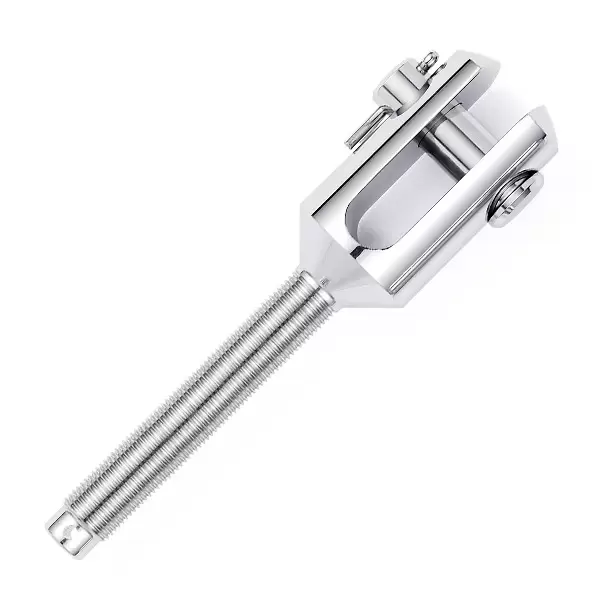

STA-LOK B16/B17 Threaded Fork Ends 316 Stainless Steel

ID 1355887

$ 70.66

1-2 weeks delivery time

Type:

Left-Hand
Right-Hand

Item:

5/16
1/4
3/8
7/16
1/2
5/8
3/4
7/8

The STA-LOK B16/B17 Threaded Fork Ends range includes fully machined 316 stainless steel fork ends for use with all turnbuckles, available with left-hand threads in the B16 series and right-hand threads in the B17 series. Designed to be stronger than the wire rope, these fittings are supplied with a split pin and cover thread sizes from 1/4" UNF to 1 3/8" UNF. Depending on size, dimensions include B from 10.0 mm to 70.0 mm, D from 6.4 mm to 35.0 mm, E from 54.0 mm to 232.0 mm, and P from 6.2 mm to 34.6 mm.

Description
Ask a Question

STA-LOK B16/B17 Threaded Fork Ends – 316 Stainless Steel Fork Ends for Turnbuckles, Left-Hand and Right-Hand UNF Threads

The STA-LOK B16/B17 Threaded Fork Ends range is designed for use with all turnbuckles, providing a strong and precise fork end connection for rigging assemblies. The B16 series is supplied with left-hand thread, while the B17 series is supplied with right-hand thread.

These fork ends are fully machined from 316 stainless steel for corrosion resistance, durability, and long service life in demanding marine and industrial environments. STA-LOK states that the fittings are stronger than the wire rope and each unit is supplied with a split pin for secure installation.

Key Features

Threaded fork ends for use with all turnbuckles
B16 series with left-hand thread
B17 series with right-hand thread
Fully machined from 316 stainless steel
Designed to be stronger than the wire rope
Supplied with split pin

Applications

Suitable for turnbuckle assemblies and rigging systems where a threaded fork end connection is required.

Technical Specifications

SKU	Thread (UNF)	B (MM)	B (INCH)	D (MM)	D (INCH)	E (MM)	E (INCH)	P (MM)	P (INCH)	Weight (KG)	Weight (LB)	Thread Type
B16-14	1/4"	10.0	0.394	6.4	0.252	54.0	2.126	6.2	1/4"	0.020	0.044	Left Hand
B17-14	1/4"	10.0	0.394	6.4	0.252	54.0	2.126	6.2	1/4"	0.020	0.044	Right Hand
B16-516	5/16"	14.7	0.579	7.9	0.311	59.0	2.323	7.7	5/16"	0.060	0.132	Left Hand
B17-516	5/16"	14.7	0.579	7.9	0.311	59.0	2.323	7.7	5/16"	0.060	0.132	Right Hand
B16-38	3/8"	17.5	0.689	9.5	0.374	67.0	2.638	9.3	3/8"	0.120	0.265	Left Hand
B17-38	3/8"	17.5	0.689	9.5	0.374	67.0	2.638	9.3	3/8"	0.120	0.265	Right Hand
B16-716	7/16"	22.2	0.874	11.1	0.437	76.0	2.992	10.9	7/16"	0.180	0.397	Left Hand
B17-716	7/16"	22.2	0.874	11.1	0.437	76.0	2.992	10.9	7/16"	0.180	0.397	Right Hand
B16-12	1/2"	27.4	1.080	12.7	0.500	83.0	3.268	12.6	1/2"	0.300	0.661	Left Hand
B17-12	1/2"	27.4	1.080	12.7	0.500	83.0	3.268	12.6	1/2"	0.300	0.661	Right Hand
B16-58	5/8"	29.4	1.157	15.9	0.625	95.0	3.750	15.6	5/8"	0.500	1.102	Left Hand
B17-58	5/8"	29.4	1.157	15.9	0.625	95.0	3.750	15.6	5/8"	0.500	1.102	Right Hand
B16-34	3/4"	33.3	1.313	19.1	0.752	124.0	4.875	18.5	3/4"	0.860	1.896	Left Hand
B17-34	3/4"	33.3	1.313	19.1	0.752	124.0	4.875	18.5	3/4"	0.860	1.896	Right Hand
B16-78	7/8"	38.1	1.500	22.2	0.874	148.0	5.813	21.5	7/8"	1.200	2.646	Left Hand
B17-78	7/8"	38.1	1.500	22.2	0.874	148.0	5.813	21.5	7/8"	1.200	2.646	Right Hand
B16-100	1"	40.0	1.575	25.4	1.000	162.0	6.375	25.0	1"	1.700	3.748	Left Hand
B17-100	1"	40.0	1.575	25.4	1.000	162.0	6.375	25.0	1"	1.700	3.748	Right Hand
B16-118	1 1/8"	50.0	1.970	28.6	1.125	190.0	7.480	28.2	1 1/8"	2.400	5.291	Left Hand
B17-118	1 1/8"	50.0	1.970	28.6	1.125	190.0	7.480	28.2	1 1/8"	2.400	5.291	Right Hand
B16-114	1 1/4"	60.0	2.362	31.8	1.252	224.0	8.812	31.5	1 1/4"	3.660	8.069	Left Hand
B17-114	1 1/4"	60.0	2.362	31.8	1.252	224.0	8.812	31.5	1 1/4"	3.660	8.069	Right Hand
B16-138	1 3/8"	70.0	2.756	35.0	1.378	232.0	9.134	34.6	1 3/8"	4.200	9.259	Left Hand
B17-138	1 3/8"	70.0	2.756	35.0	1.378	232.0	9.134	34.6	1 3/8"	4.200	9.259	Right Hand

Construction and Installation

Fork end design for turnbuckle assemblies
Available in left-hand and right-hand thread versions
Fully machined stainless steel construction
Supplied with split pin
