ID
1355860
$ 128.82
1-2 weeks delivery time
Item:
- 5/16
- 1/4
The STA-LOK B30 Bronze Fork & Blank turnbuckles are forged from high strength bronze alloy with a polished chromium finish and feature a machined Threaded Fork End (B16) at one end. Available with UNF threads from 1/4" to 3/4", they provide precise adjustment from 76.0 mm to 168.0 mm depending on size. Fork widths range from 6.4 mm to 19.1 mm, with fork pins from 6.2 mm to 18.5 mm.
- Description
- Ask a Question
-

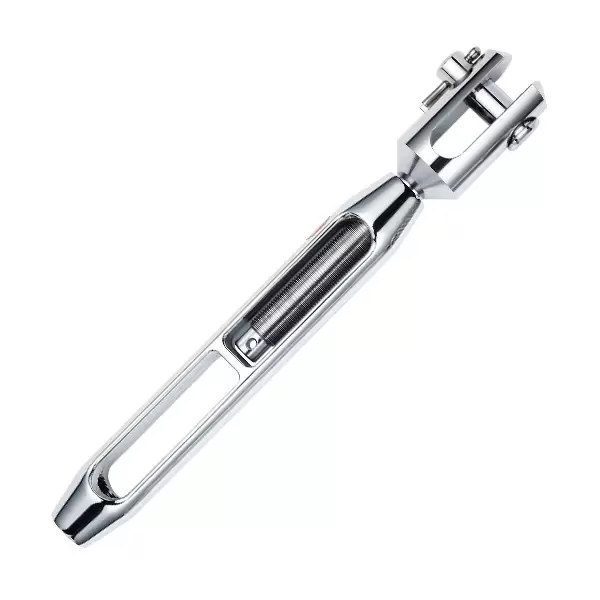

STA-LOK B30 Bronze Fork & Blank Turnbuckles – Chromium-Plated Bronze Turnbuckles with Threaded Fork End
The STA-LOK B30 Bronze Fork & Blank turnbuckles are designed for rigging applications requiring a threaded fork connection combined with a blank end for adjustment. Each unit is supplied with a machined Threaded Fork End (B16) at one end.
The body is forged from high strength bronze alloy and finished with a high quality polished chromium finish, providing durability and resistance to corrosion in marine and structural environments.
Key Features
- Bronze turnbuckle with fork and blank configuration
- Supplied with machined Threaded Fork End (B16)
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Designed for reliable adjustment in rigging systems
Applications
Suitable for marine and architectural rigging systems where a threaded fork connection and adjustable turnbuckle body are required.
Technical Specifications
SKU Thread (UNF) Fork Width (MM) Fork Width (INCH) Fork Pin (MM) Fork Pin (INCH) Adjustment (MM) Adjustment (INCH) B30-14 1/4" 6.4 0.252 6.2 1/4" 76.0 2.992 B30-516 5/16" 7.9 0.311 7.7 5/16" 83.0 3.268 B30-38 3/8" 9.5 0.374 9.3 3/8" 92.0 3.622 B30-716 7/16" 11.1 0.437 10.9 7/16" 100.0 3.937 B30-12 1/2" 12.7 0.500 12.6 1/2" 104.0 4.094 B30-58 5/8" 15.9 0.625 15.6 5/8" 126.0 4.961 B30-34 3/4" 19.1 0.752 18.5 3/4" 168.0 6.615
Construction and Design
- Bronze forged turnbuckle body
- Chromium polished surface finish
- Machined threaded fork end connection
- Compatible with Threaded Fork End (B16) dimensions
-
