ID
1355636
$ 92.24
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 8
- 10
- 12
Item:
- 5/16
- 1/4
- 3/8
- 7/16
- 1/2
- 5/8
- 3/4

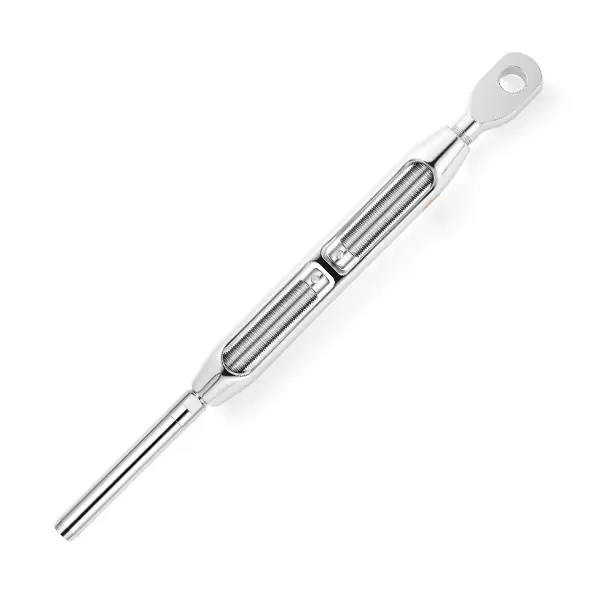

The STA-LOK B44 Bronze Eye & Swage range consists of bronze turnbuckle assemblies supplied with a Threaded Eye (C770) at one end and a Swage Stud (051) at the other. Forged from high strength bronze alloy and finished with a high quality polished chromium finish, these assemblies are designed for marine rigging and wire rope tensioning applications. According to the supplied data, they are stronger than the wire rope. The 12 mm version features a machined eye.
- Description
- Ask a Question
-
STA-LOK B44 Bronze Eye & Swage – Bronze Turnbuckle Assemblies with Threaded Eye and Swage Stud
The STA-LOK B44 Bronze Eye & Swage range consists of bronze turnbuckle assemblies designed for marine rigging and wire rope tensioning applications. Each assembly is supplied with a Threaded Eye (C770) at one end and a Swage Stud (051) at the other.
Forged from high strength bronze alloy and finished with a high quality polished chromium finish, these turnbuckles combine corrosion resistance, durability, and a refined appearance suitable for demanding marine environments.
According to the supplied data, the assemblies are stronger than the wire rope. The range covers multiple wire sizes and thread options for precise adjustment in a variety of rigging setups. Please note that the 12 mm version features a machined eye rather than a forged eye.
Key Features
- Bronze turnbuckle assembly with threaded eye and swage stud
- Supplied with Threaded Eye (C770) and Swage Stud (051)
- Forged from high strength bronze alloy
- High quality polished chromium finish
- Designed for marine rigging and wire rope tensioning
- Described as stronger than the wire rope
- Available in multiple wire sizes and UNF thread options
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) Thread (UNF) C (mm) D (mm) H (mm) Adjustment (mm) Additional Information STB44-03-1/4 3 mm 1/8" 1/4" 8.4 6.0 6.4 76.0 - STB44-04-1/4 4 mm 5/32" 1/4" 8.4 6.0 6.4 76.0 - STB44-04-5/16 4 mm 5/32" 5/16" 9.5 6.5 8.0 83.0 - STB44-05-5/16 5 mm 3/16" 5/16" 9.5 6.5 8.0 83.0 - STB44-05-3/8 5 mm 3/16" 3/8" 11.0 7.8 9.5 92.0 - STB44-06-3/8 6 mm - 3/8" 11.0 7.8 9.5 92.0 - STB44-06-7/16 6 mm - 7/16" 12.0 9.3 11.1 100.0 - STB44-07-7/16 7 mm 9/32" 7/16" 12.0 9.3 11.1 100.0 - STB44-07-1/2 7 mm 9/32" 1/2" 13.5 11.5 12.7 104.0 - STB44-08-1/2 8 mm 5/16" 1/2" 13.5 11.5 12.7 104.0 - STB44-08-5/8 8 mm 5/16" 5/8" 18.3 13.6 16.0 126.0 - STB44-10-5/8 10 mm - 5/8" 18.3 13.6 16.0 126.0 - STB44-12-3/4 12 mm - 3/4" 22.5 18.0 19.5 168.0 Eye machined not forged
Technical Information
- Product type: Bronze eye and swage turnbuckle assembly
- Material: High strength bronze alloy
- Finish: Polished chromium finish
- End fittings: Threaded Eye (C770) and Swage Stud (051)
- Application: Marine rigging and wire rope tensioning
- Construction note: 12 mm version uses a machined eye
-
